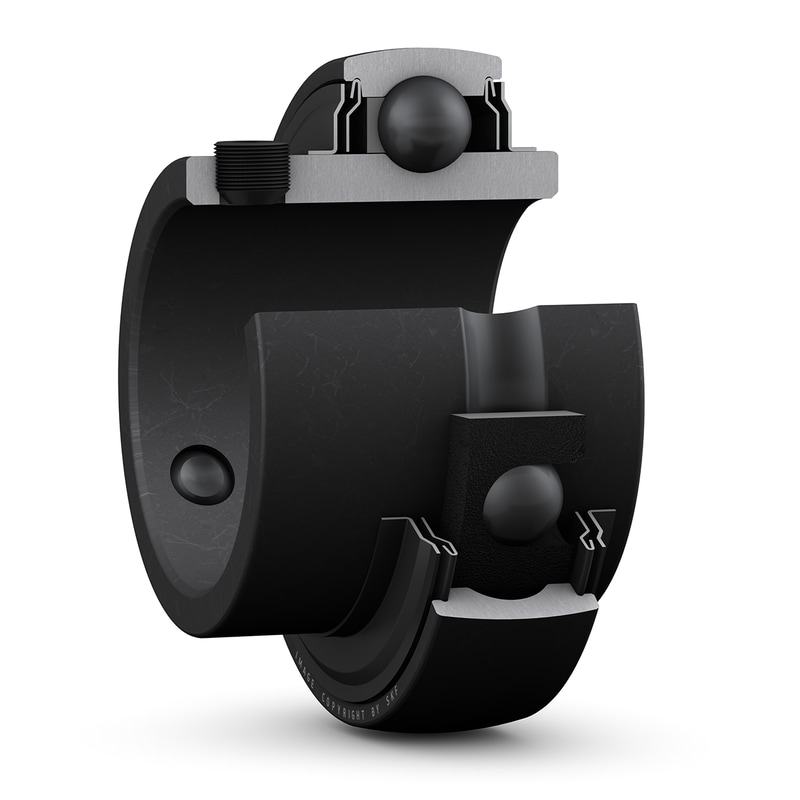

SKF high temperature bearings are designed to deliver increased reliability, reduced complexity and decreased environmental impact in operating temperatures up to 350 °C (660 °F). This makes these products very suitable for applications in kiln trucks, roller hearth furnaces, and bakeries, where there are both constant and alternating directions of rotation.
| Running in required |
Yes
|
| d |
19.05 mm
|
Bore diameter |
|---|---|---|
| D |
47 mm
|
Outside diameter |
| B |
31 mm
|
Width inner ring |
| C |
14 mm
|
Width outer ring |
| d1 |
≈ 28.2 mm
|
Shoulder diameter inner ring |
| B4 |
4.5 mm
|
Distance from locking device side face to thread centre |
| s1 |
18.3 mm
|
Distance from locking device side face to raceway centre |
| r1,2 |
min. 0.6 mm
|
Chamfer dimension |
| Basic dynamic load rating | C |
12.7 kN
|
|---|---|---|
| Basic static load rating | C0 |
6.55 kN
|
| Limiting speed |
130 r/min
|
|
| Operating temperature | T |
max. 250 °C
|
| Mass bearing |
0.16 kg
|
| Set screw | G2 |
1/4-28 UNF
|
|---|---|---|
| Hexagonal key size for set screw | N |
3.175 mm
|
| Recommended tightening torque for set screw |
4 N·m
|
