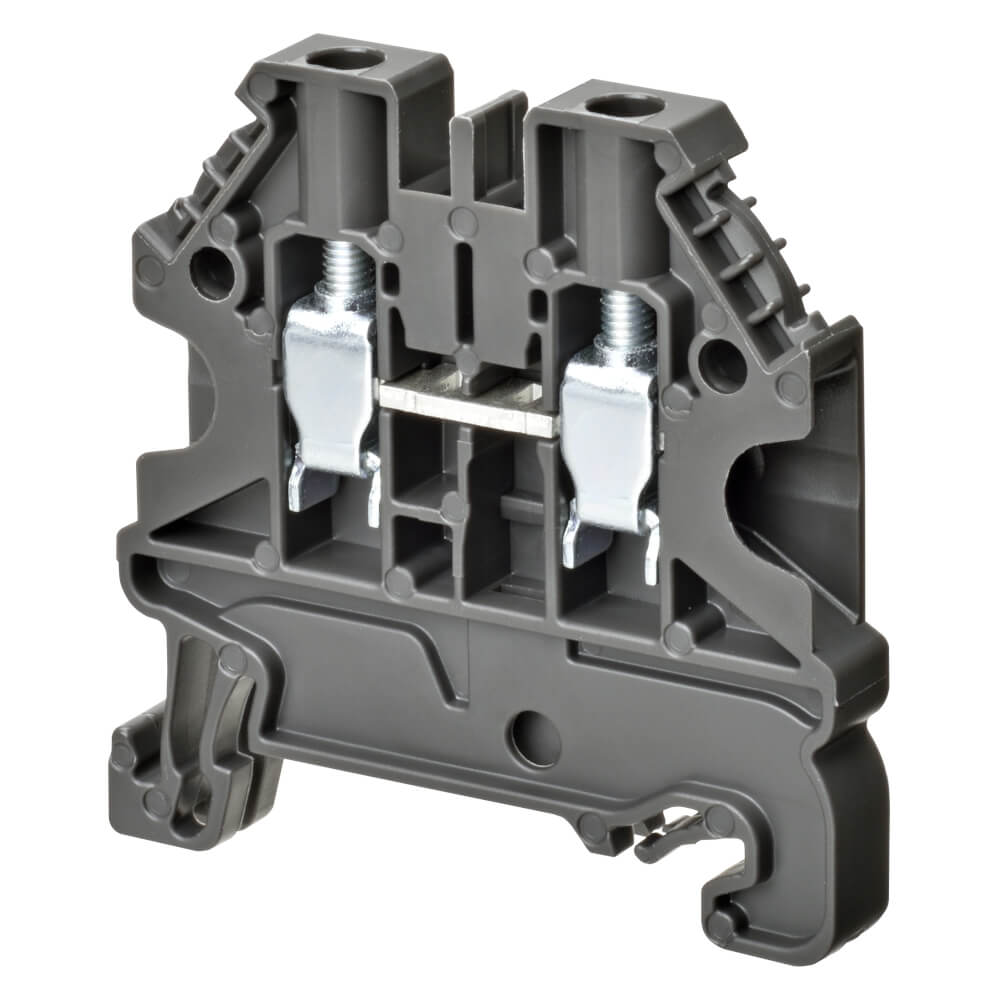

Feed-through DIN rail terminal block with screw connection for mounting on TS 35; nominal cross section 4 mm²; width 6 mm; color gray
| Type of electrical connection 1 | Screw connection |
| Type | Feed through terminal |
| Nominal cross section | 4 mm² |
| Number of levels | 1 |
| Number of clamp position per level | 2 |
| Color | Grey |
| Insulating material | Polyamide |
| Inflammability class of insulation material according to UL94 | V0 |
| Pack size | 100 pc |
| Product Weight (unpacked) | 9 g |
Datasheet
EN PDF
Ground DIN rail terminal block with screw connection for mounting on TS 35 and TS 32, nominal cross section 35 mm², width 16 mm, color green/yellow
Multi conductor feed-through terminal block with 4 screw connections for mounting on TS 35; nominal cross section 4 mm²; width 6 mm; color blue
Feed-through DIN rail terminal block with screw connection for mounting on TS 35; nominal cross section 16 mm²; width 12 mm; color gray
Fuse terminal block with screw connection for mounting on TS 35 and TS 32, nominal cross section 4 mm², width 6 mm, fuse block for 5 mm, color gray
