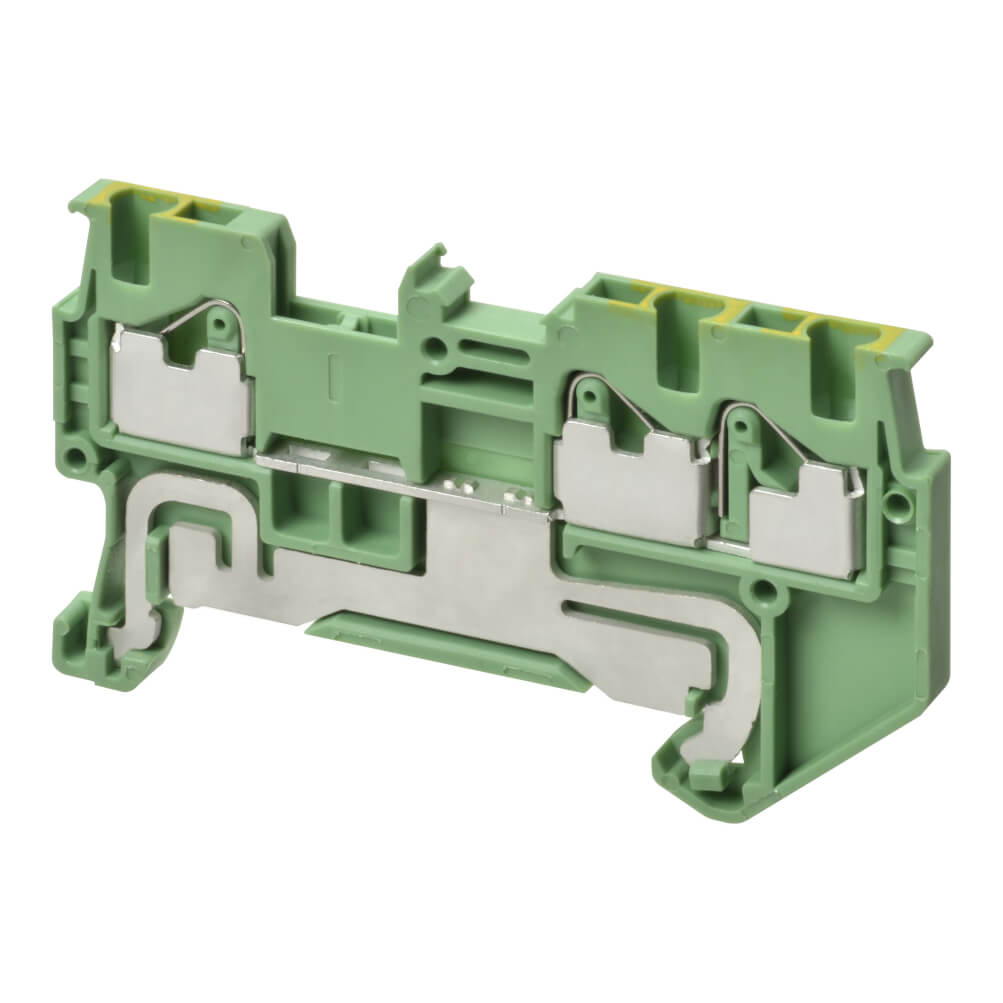

Ground multi conductor DIN rail terminal block with 3 push-in plus connections for mounting on TS 35, nominal cross section 1 mm², color green/yellow
| Type | Ground terminal |
| Type of electrical connection 1 | Spring clamp connection |
| Nominal cross section | 1.0 mm² |
| Number of levels | 1 |
| Number of clamp position per level | 3 |
| Color | Green/yellow |
| Insulating material | Polyamide |
| Inflammability class of insulation material according to UL94 | V0 |
| Pack size | 50 pc |
| Product Weight (unpacked) | 5.5 g |
Datasheet
EN PDF
