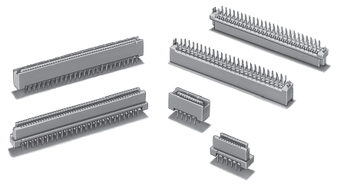

XH3 Half-pitch Board-to-Board Connectors

The stacking space can be adjusted from 12 to 20 mm in 1-mm increments.
A pitch of 1.27 mm for high-density mounting in double-row arrangements.
A quadruple-row staggered arrangement (1.27 x 1.905 mm) for board connection.
All models incorporate fastening pins to secure the terminals, thus preventing floating or falling over during soldering.
Leaf contact construction enables smooth mating and resistance to bending.
Space saving mating length of 3.1 mm.
Press fitting assures long-term contact quality. The gold/palladium plating has been improved for better contact reliability.
Not mated with XH2 and XH4 Half-pitch Connectors.
