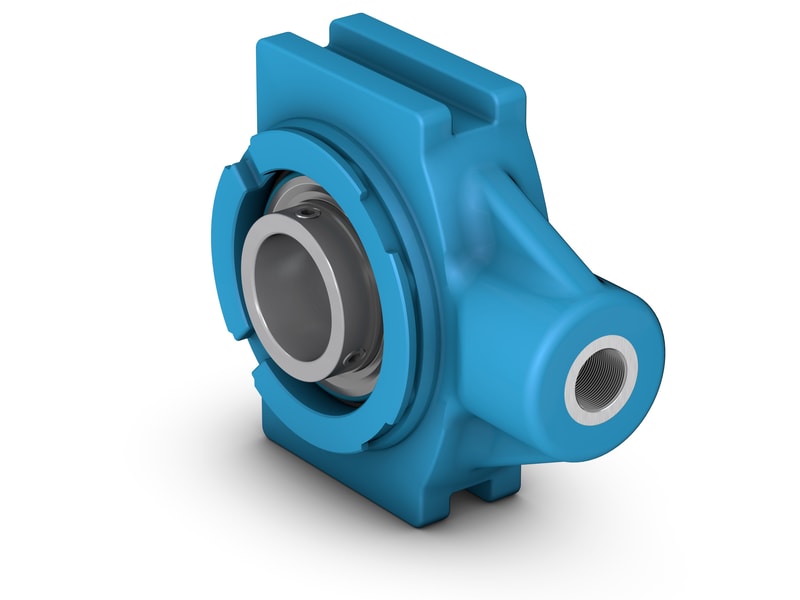

Take-up ball bearing units for the SKF Food Line consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a composite housing. They are strong, yet lightweight, and chemically resistant to detergents and contaminants. Typically mounted in take-up frames, the unit has an inner ring extended on both sides and is locked by tightening a set screw on the inner ring, that makes it easy to mount.
| Compliance with standard |
Not standardized
|
| Purpose specific |
For food and beverage applications
|
| Material, housing |
Composite for the SKF Food Line
|
| Sealing, bearing |
Seal and flinger on both sides
|
| Sealing type, bearing |
Contact, gutter
|
| Sealing, unit |
Optional end cover
|
| Coating |
Zinc-coated bearing
|
| d |
50 mm
|
Bore diameter |
|---|---|---|
| d1 |
≈ 62.51 mm
|
Shoulder diameter of inner ring |
| Dc |
98 mm
|
Centring diameter |
| Ha |
6 mm
|
Groove height for backseal |
| A |
45 mm
|
Overall width |
| A1 |
16 mm
|
Width of piloting groove |
| A2 |
36 mm
|
Width of flange in which piloting grooves are provided |
| A5 |
77 mm
|
Standout of end cover |
| B |
51.6 mm
|
Width of inner ring |
| B4 |
9 mm
|
Distance from locking device side face to thread centre |
| H |
117 mm
|
Overall height |
| H1 |
101.8 mm
|
Distance between bottoms of piloting grooves |
| H2 |
46 mm
|
Height of attachment end |
| L |
144 mm
|
Overall length |
| L1 |
90 mm
|
Distance from attachment end face to centre line of spherical seat diameter |
| L3 |
85 mm
|
Length of piloting groove |
| G |
M20
|
Thread size attachment end |
| G1 |
26 mm
|
Thread length |
| s1 |
32.6 mm
|
Distance from locking device side face to raceway centre |
| Basic dynamic load rating | C |
35.1 kN
|
|---|---|---|
| Basic static load rating | C0 |
23.2 kN
|
| Fatigue load limit | Pu |
0.98 kN
|
| Limiting speed |
2 200 r/min
|
|
|
Limiting speed with shaft tolerance h6
|
| Mass bearing unit |
1.1 kg
|
| Set screw | G2 |
M10x1
|
|---|---|---|
| Hexagonal key size for set screw |
5 mm
|
|
| Recommended tightening torque for set screw |
16.5 N·m
|
