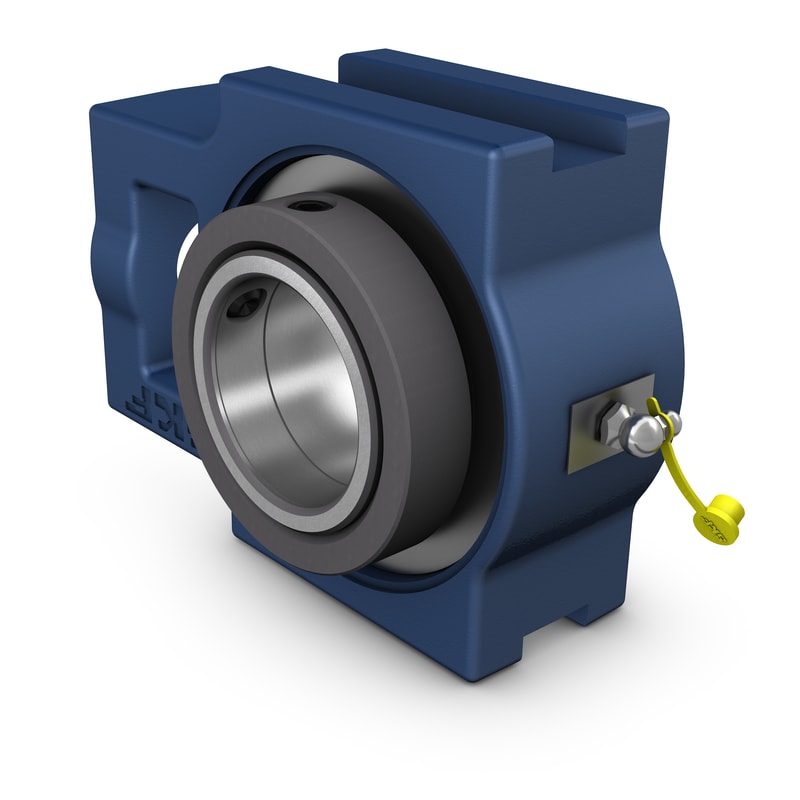

Pillow (plummer) block roller bearing units and take-up roller bearing units consist of a spherical or tapered roller bearing mounted in a non-split housing that can be bolted to a support surface. The units are sealed and lubricated and ready to use. This assortment of units covers a wide range of requirements, in metric and inch dimensions.
| Metric/inch series |
Inch
|
| Bearing insert |
Spherical roller bearing
|
| Bearing position |
Locating
|
| Locking method |
Set screws
|
| Bearing housing seal type |
Radial lip seal
|
| Shaft diameter | da |
36.513 mm
|
|---|---|---|
| Collar diameter | d2 |
62.738 mm
|
| Housing width | A |
58.738 mm
|
| Width of piloting groove | A1 |
13.462 mm
|
| Width of flange in which piloting grooves are provided | A2 |
52.388 mm
|
| Inner ring width | B |
69.85 mm
|
| Overall housing height | H |
104.775 mm
|
| Distance between bottoms of piloting grooves | H1 |
88.9 mm
|
| Height of attachment end | H2 |
61.913 mm
|
| Overall length | L |
128.588 mm
|
| Distance from attachment end face to centre line of bearing | L1 |
80.963 mm
|
| Length of attachment end | L2 |
17.463 mm
|
| Length of guiding slot | L3 |
69.85 mm
|
| Diameter of attachment bolt hole | N |
22.225 mm
|
| Length of attachment slot | N1 |
15.875 mm
|
| Height of attachment slot | N2 |
36.513 mm
|
| Inner ring center to end | s1 |
45.085 mm
|
| Centre line of locating support | S |
0.794 mm
|
| Overall unit width | T |
71.438 mm
|
| Thread of grease fitting | GN |
1/8-27 NPT
|
|---|
| Fatigue load limit | Pu |
9.12 kN
|
|---|---|---|
| Limiting speed |
5 100 r/min
|
|
| Limiting value | e |
0.28
|
| Calculation factor | Y1 |
2.4
|
| Calculation factor | Y2 |
3.6
|
| Calculation factor | Y0 |
2.5
|
| Bearing mean diameter | dm |
59.944 mm
|
| Axial holding force of the locking mechanism | Pa |
2.29 kN
|
| Mass |
2.81 kg
|
| Set screw |
3/8-24 UNF-3A x 1/2″
|
| Tightening torque for set screws |
28.246 N·m
|
| Grease quantity for relubrication |
4 g
|
