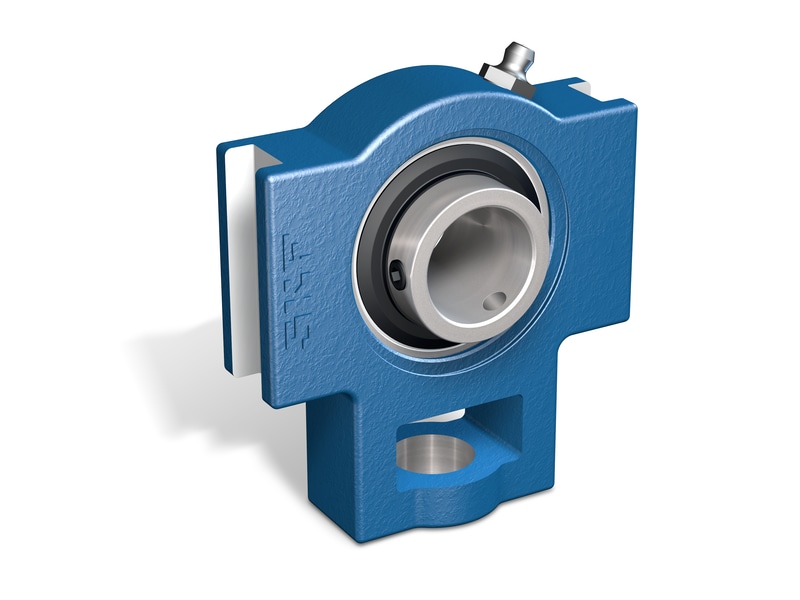

Take-up ball bearing units consisting of an insert bearing mounted in a composite or cast metal housing. The units are typically mounted in take-up frames and adjusted by an adjustment screw. In addition to being part of a unit, some take-up housings for insert bearings are available as separate components. The SKF assortment includes take-up ball bearing units compliant with several industrial standards, as required by many industrial applications.
| Compliance with standard |
North American standard
|
| Purpose specific |
For material handling applications
|
| Material, housing |
Cast iron
|
| Sealing, bearing |
Seal on both sides
|
| Sealing type, bearing |
Contact, standard
|
| Sealing, unit |
Optional end cover
|
| Coating |
Without
|
| d |
30.163 mm
|
Bore diameter |
|---|---|---|
| d1 |
≈ 39.7 mm
|
Shoulder diameter of inner ring |
| d2 |
44.1 mm
|
Outside diameter of locking ring |
| A |
37.3 mm
|
Overall width |
| A1 |
13.5 mm
|
Width of piloting groove |
| A2 |
27.8 mm
|
Width of flange in which piloting grooves are provided |
| A5 |
22.5 mm
|
Standout of end cover |
| B1 |
35.7 mm
|
Overall bearing width |
| B4 |
5.95 mm
|
Distance from locking device side face to thread centre |
| H |
102.4 mm
|
Overall height |
| H1 |
88.9 mm
|
Distance between bottoms of piloting grooves |
| H2 |
56.4 mm
|
Height of attachment end |
| L |
112.8 mm
|
Overall length |
| L1 |
69.9 mm
|
Distance from attachment end face to centre line of spherical seat diameter |
| L2 |
10.3 mm
|
Length attachment end |
| L3 |
57.2 mm
|
Length of piloting groove |
| N |
20.6 mm
|
Diameter of attachment bolt hole |
| N1 |
15.9 mm
|
Length of attachment slot |
| N2 |
37.3 mm
|
Height of attachment slot |
| s1 |
26.7 mm
|
Distance from locking device side face to raceway centre |
| RG |
1/8-27 NPT
|
Housing thread for the grease fitting |
|---|---|---|
| R1 |
1.1 mm
|
Axial position of the housing thread |
| Rα |
30 °
|
Angular position of the housing thread |
| DN |
6.579 mm
|
Diameter of head sphere of grease fitting |
|---|---|---|
| SWN |
11.113 mm
|
Hexagonal key size for the grease fitting |
| GN |
1/8-27 NPT
|
Thread of grease fitting |
| Basic dynamic load rating | C |
19.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
11.2 kN
|
| Fatigue load limit | Pu |
0.475 kN
|
| Limiting speed |
6 300 r/min
|
|
|
Limiting speed with shaft tolerance h6
|
| Mass bearing unit |
1.25 kg
|
| Set screw | G2 |
5/16-24 UNF
|
|---|---|---|
| Hexagonal key size for set screw |
3.969 mm
|
|
| Recommended tightening torque for set screw |
6.5 N·m
|
