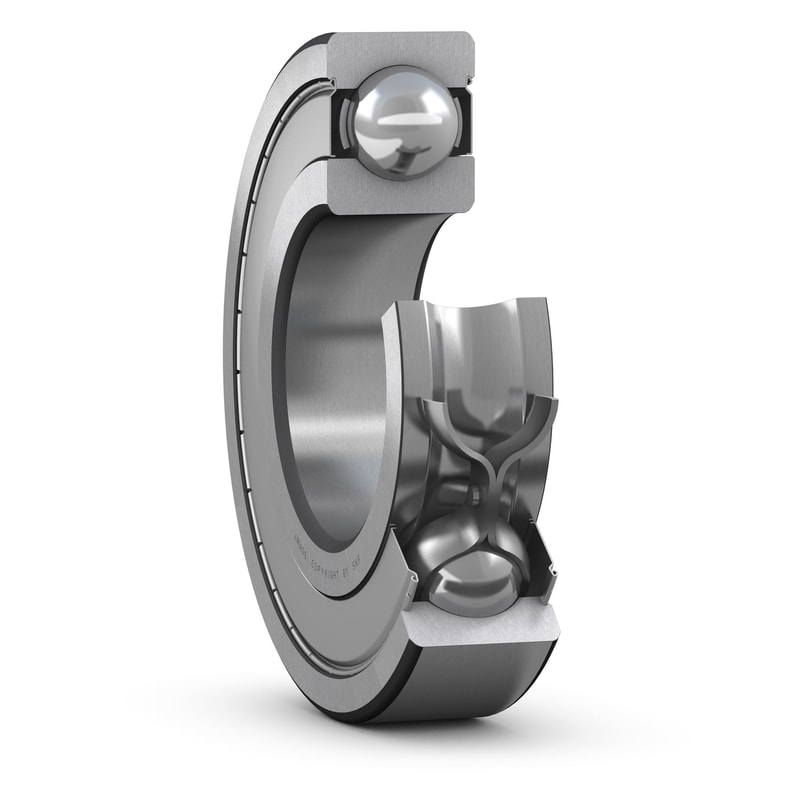

Stainless steel single row deep groove ball bearing with seals or shields on both sides, provide greater chemical and corrosion resistance. As with deep groove ball bearings generally, they are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
| d |
5 mm
|
Bore diameter |
|---|---|---|
| D |
10 mm
|
Outside diameter |
| B |
4 mm
|
Width |
| d1 |
≈ 6 mm
|
Shoulder diameter |
| d2 |
≈ 6 mm
|
Recess diameter |
| D2 |
≈ 8.4 mm
|
Recess diameter |
| r1,2 |
min. 0.15 mm
|
Chamfer dimension |
| da |
min. 5.9 mm
|
Diameter of shaft abutment |
|---|---|---|
| da |
max. 5.9 mm
|
Diameter of shaft abutment |
| Da |
max. 8.8 mm
|
Diameter of housing abutment |
| ra |
max. 0.15 mm
|
Radius of shaft or housing fillet |
| Basic dynamic load rating | C |
0.247 kN
|
|---|---|---|
| Basic static load rating | C0 |
0.085 kN
|
| Fatigue load limit | Pu |
0.004 kN
|
| Reference speed |
130 000 r/min
|
|
| Limiting speed |
67 000 r/min
|
|
| Minimum load factor | kr |
0.015
|
| Calculation factor | f0 |
7.6
|
| Mass bearing |
0.0012 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
Normal
|
