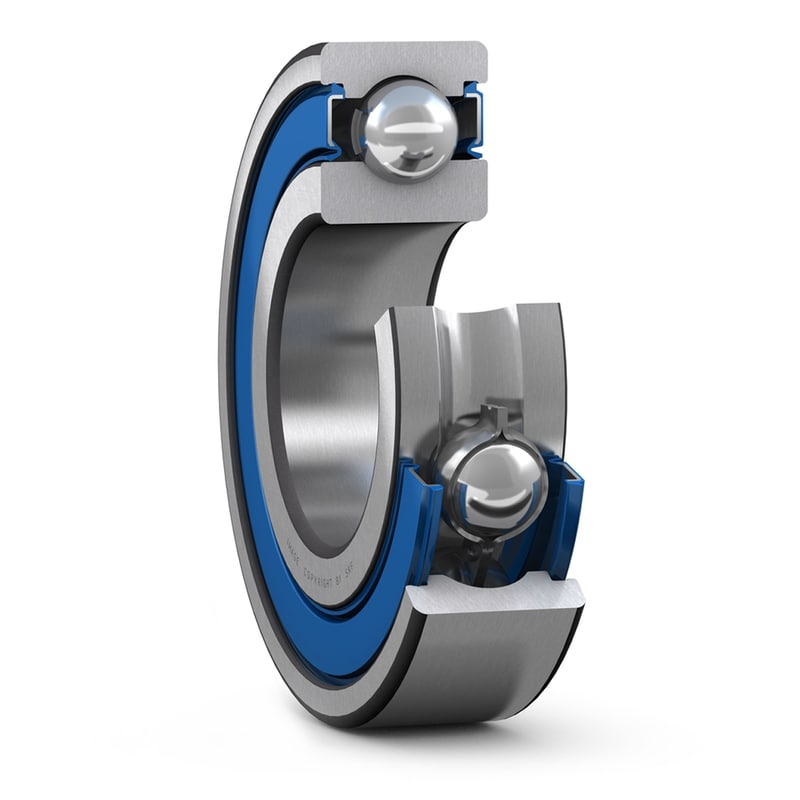

Single row deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They can accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
| d |
12 mm
|
Bore diameter |
|---|---|---|
| D |
32 mm
|
Outside diameter |
| B |
10 mm
|
Width |
| d1 |
≈ 18.5 mm
|
Shoulder diameter |
| d2 |
≈ 18.5 mm
|
Recess diameter |
| D2 |
≈ 27.95 mm
|
Recess diameter |
| r1,2 |
min. 0.6 mm
|
Chamfer dimension |
| da |
min. 16 mm
|
Diameter of shaft abutment |
|---|---|---|
| da |
max. 18 mm
|
Diameter of shaft abutment |
| Da |
max. 28.5 mm
|
Diameter of housing abutment |
| ra |
max. 0.6 mm
|
Radius of shaft or housing fillet |
| Basic dynamic load rating | C |
5.72 kN
|
|---|---|---|
| Basic static load rating | C0 |
3 kN
|
| Fatigue load limit | Pu |
0.127 kN
|
| Limiting speed |
15 000 r/min
|
|
| Minimum load factor | kr |
0.03
|
| Calculation factor | f0 |
12
|
| Mass bearing |
0.036 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
Normal
|
