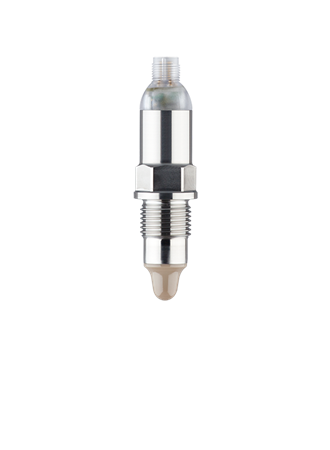

VEGAPOINT 11

VEGAPOINT 11

Application area

From DK > 2, from thread ½”, universal connection G1″ for hygiene adapter, M12, transistor output
VEGAPOINT 11 is a low-cost limit switch for the detection of water-based liquids. The optional universal connection for hygiene adapters ensures reduced installation effort and leaner stock keeping and perfectly meets the requirements for hygienic processes in the food, beverage and pharmaceutical industries. It can be used without adjustment in the application.

Your benefit

  • Simple setup, as adjustment-free
  • Low-cost limit switch with smallest installation dimensions



SKU: VEGAPOINT 11

$14,900.00

Add to Cart
Technical specifications
Approvals
Measuring range – Distance
– [Meter – Foot]
Process temperature
-20 … 100 °C [°C – °F]
Process pressure
-1 … 25 bar [Bar – kPa – psi]
Materials, wetted parts
316L
PEEK
Threaded connection
≥ G½, ≥ ½ NPT
Seal material
EPDM
FKM
Protection rating
IP66/IP67
IP69
Output
Transistor (PNP)
IO-Link
Ambient temperature
-40 … 70 °C
Display & adjustment
Scope
CSA / USA and Canada
Foodstuffs/Pharma
3A
EHEDG
FDA
EG1935/2004
Indication
LED
