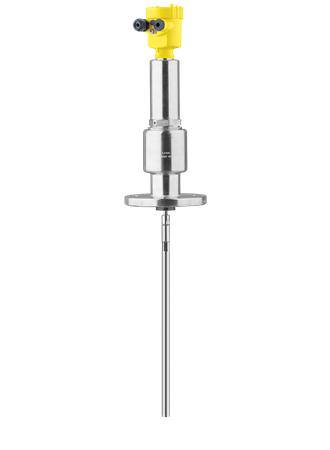

VEGAFLEX 86

VEGAFLEX 86

Application area

Cable, rod or coaxial sensor. Its robust, mechanical design and the second process seal, the Second Line of Defense, protect the sensor for demanding measurement tasks. Process temperature: -196 … 450° C; process pressure: -1 … 400 bar

The VEGAFLEX 86 level sensor measures maintenance-free all liquids under extreme pressure and temperature conditions. Even in applications with buildup, foam generation and condensation, the sensor delivers precise and reliable measured values. In saturated steam applications, a special reference probe ensures a density-independent measurement. The VEGAFLEX 86 offers an economical level and interface measurement for your application.

Your benefit

The guided adjustment enables a simple, time-saving and reliable setup
Shortenable probes offer a simple standardisation and highest flexibility in the planning
Comprehensive diagnostic possibilities ensure a maintenance-free operation and hence a high plant availability

SKU: VEGAFLEX 86

Technical Data
Reviews (0)

Technical specifications

Measuring range – Distance	75 m [Meter – Foot]
Process temperature	-196 … 450 °C [°C – °F]
Process pressure	-1 … 400 bar [Bar – kPa – psi]
Accuracy	± 2 mm
Version	Coax version ø 21.3 mm with multiple hole Coax version ø 42.2 mm with single hole Coax version ø 42.2 mm with multiple hole Exchangeable rod ø 16 mm Exchangeable cable ø 2 mm with gravity weight Exchangeable cable ø 4 mm with gravity weight Exchangeable cable ø 2 mm with centering weight Exchangeable cable ø 4 mm with centering weight
Materials, wetted parts	316L Alloy C22 (2.4602) 316
Threaded connection	≥ G¾, ≥ ¾ NPT
Flange connection	≥ DN25, ≥ 1″
Seal material	FFKM graphit and ceramic
Housing material	Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished)
Protection rating	IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar)
Output	Profibus PA Foundation Fieldbus 4 … 20 mA/HART – two-wire Modbus 4 … 20 mA/HART – four-wire
Ambient temperature	-40 … 80 °C

Approvals

Scope	ATEX / Europe CSA / Canada FM / USA EAC (GOST) / Belarus EAC (GOST) / Kazakhstan EAC (GOST) / Russia IEC / worldwide NEPSI / China UKR Sepro / Ukraine INMETRO / Brazil CCOE / India UKEX
Explosion protection	Intrinsic safety “i” Flameproof enclosure “d” Dust explosion protection through housing “t”
Ship approval	ABS BV CCS DNV LR NK RINA
Overfill protection	WHG VLAREM II
SIL qualification	SIL2
Steam boiler approval	EN12952-11, EN12953-9

Display & adjustment

Adjustment	PLICSCOM PC, PACTware and DTM HART-Communicator Software (e. g. AMS™, PDM)
Indication	Display/adjustment module PLICSCOM VEGADIS 81 VEGADIS 82
