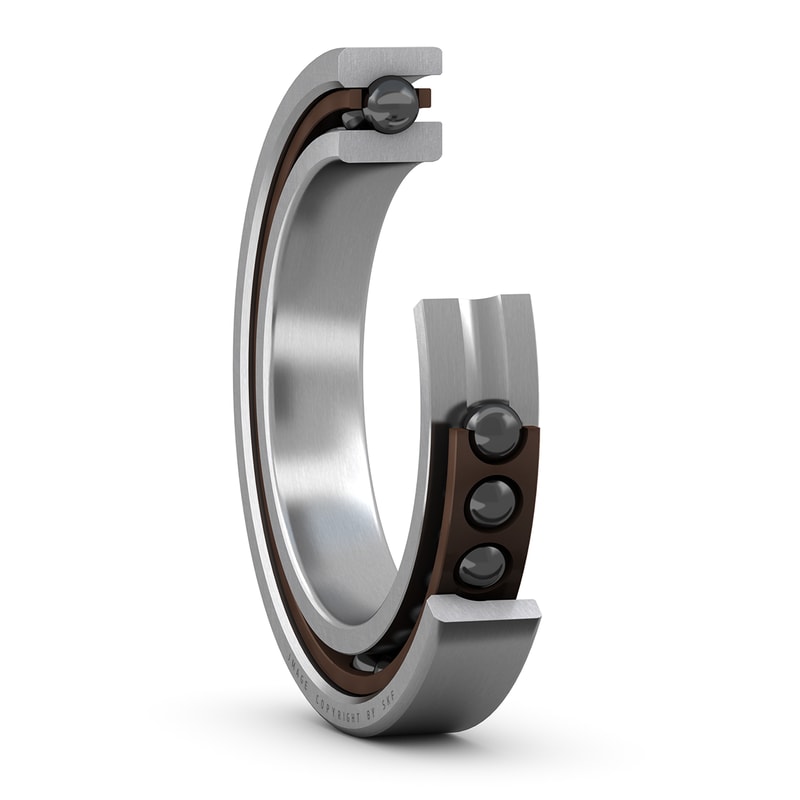

These super-precision, high-speed, E design, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed for high-speed operation and, compared to SKF B design high-speed bearings, have a slightly higher speed capability and can accommodate heavier loads. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices.
| Universal matching bearing(s) |
Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
|
| d |
60 mm
|
Bore diameter |
|---|---|---|
| D |
95 mm
|
Outside diameter |
| B |
18 mm
|
Width |
| d1 |
72.74 mm
|
Shoulder diameter of inner ring (large side face) |
| d2 |
70.6 mm
|
Shoulder diameter of inner ring (small side face) |
| D1 |
82.22 mm
|
Shoulder diameter of outer ring (large side face) |
| r1,2 |
min. 1.1 mm
|
Chamfer dimension |
| r3,4 |
min. 0.6 mm
|
Chamfer dimension |
| a |
19.5 mm
|
Distance from side face to pressure point |
| da |
min. 66 mm
|
Diameter of shaft abutment |
|---|---|---|
| db |
min. 66 mm
|
Diameter of shaft abutment |
| Da |
max. 89 mm
|
Diameter of housing abutment |
| Db |
max. 90.8 mm
|
Diameter of housing abutment |
| ra |
max. 1 mm
|
Radius of fillet |
| rb |
max. 0.6 mm
|
Radius of fillet |
| dn |
74.6 mm
|
Position of oil nozzle |
| Basic dynamic load rating | C |
17.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
12.9 kN
|
| Fatigue load limit | Pu |
0.4 kN
|
| Attainable speeds |
Contact SKF for the attainable speeds
|
|
| Contact angle | α |
15 °
|
| Ball diameter | Dw |
7.938 mm
|
| Number of rows | i |
1
|
| Number of balls (per bearing) | z |
25
|
| Reference grease quantity (per bearing) | Gref |
5.3 cm³
|
| Preload class |
A
|
|
| Preload when unmounted | G |
92 N
|
| Axial stiffness |
53 N/µm
|
| Correction factor dependent on bearing series and size | f |
1.08
|
|---|---|---|
| Correction factor dependent on contact angle | f1 |
1
|
| Correction factor, preload class A | f2A |
1
|
| Correction factor for hybrid bearings | fHC |
1.01
|
| Calculation factor for equivalent loads | f0 |
8.5
|
|---|---|---|
| Additional factors for equivalent loads |
Refer to Notes 1 and 2 below
|
| Mass |
0.39 kg
|
