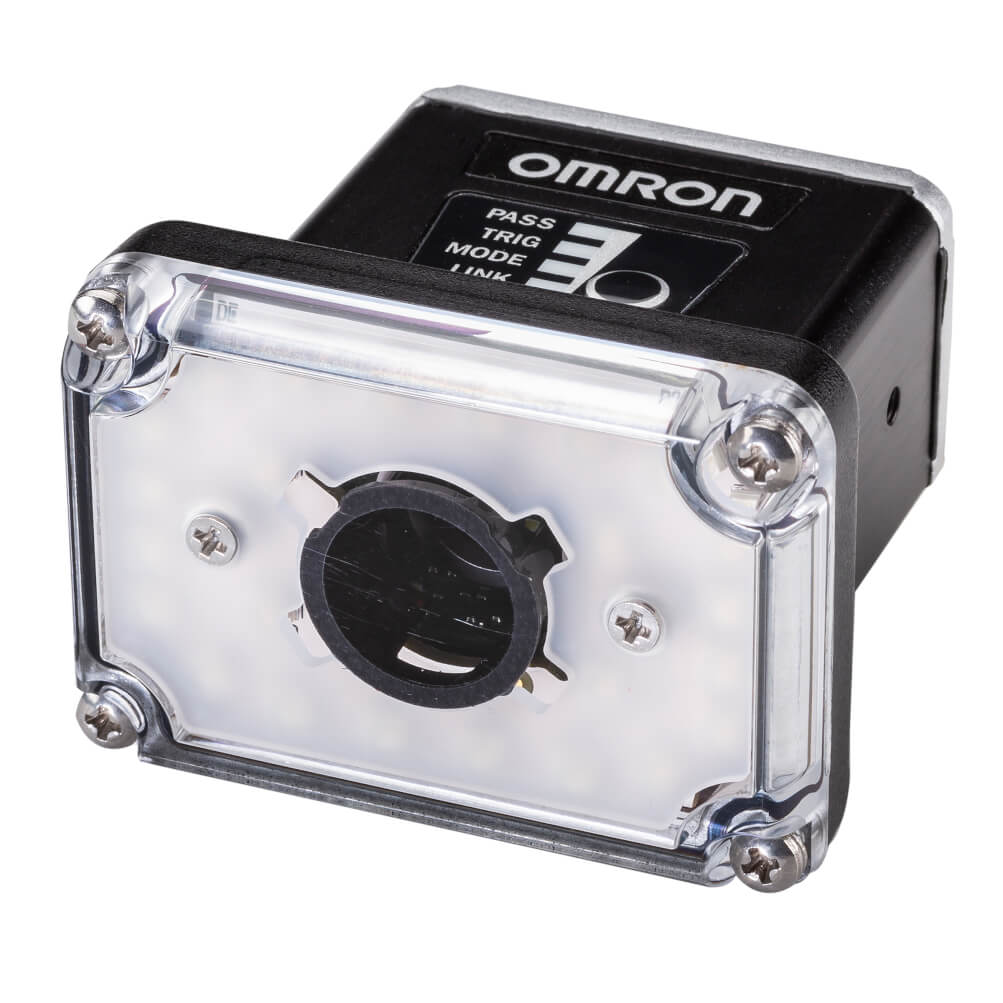

V430 Code Reader, 1.2 MP Monochrome, Narrow view, Autofocus 40-150 mm, Red ring light, X-Mode, Ethernet TCP/IP, EtherNet/IP, PROFINET, IP65/IP67
| Number of pixels | 1.2 MP |
| Camera type | Monochrome |
| Autofocus | ✔ |
| Focus distance | 40-150 mm |
| Field of view (width) | 16-43 mm |
| Decoder type | X-Mode (advanced 1D+2D+DPM) |
| Frame rate | 42 fps |
| Illumination | Red LED ring |
| Image width | 1280 pixels |
| Image height | 960 pixels |
| Shutter type | Global |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, PROFINET Slave, Serial RS-232C |
| Digital output type | PNP |
| Product Height (unpacked) | 25.4 mm |
| Product Width (unpacked) | 44.5 mm |
| Product Depth (unpacked) | 56.9 mm |
| Product Weight (unpacked) | 68 g |
| Degree of protection (IP) | IP65/IP67 |
| V430-AF1R | V/F 4×0-F Ringlight Diffusor Installation Kit |
|
|
| V430-AF2R | V/F 4×0-F Ringlight Polarizer Installation Kit |
|
|
| V430-ALBR | V/F 430-F Blue Ring Light Installation Kit |
|
|
| V430-ALIR | V/F 430-F IR Ring Light Installation Kit |
|
|
| V430-ALRR | V/F 430-F Red Ring Light Installation Kit |
|
|
| V430-ALWR | V/F 430-F White Ring Light Installation Kit |
|
|
 |
V430-AM2 | V/F 4×0-F 4” (102 mm) Ram Mount Stand |
|
| V430-AM3 | V/F 4×0-F APG Pan and Tilt Camera Mount |
|
|
| V430-AM4 | V/F 4×0-F Nylon Screw and Washer Electrical Isolation Mounting Kit |
|
|
| V430-AM5 | V/F 4×0-F MS-4 / MINI to V/F4XX-F Adapter Plate |
|
|
| V430-AM7 | V/F 4×0-F QX / Vision HAWK to V/F4XX-F Adapter Plate |
|
| V430-AF0R | V/F 430-F Ringlight Front Window Installation Kit |
|
Datasheet
EN PDF
V430 Code Reader, 0.3 MP monochrome, Medium view, Fixed focus 102 mm, White light, 1D/2D decoder, Ethernet TCP/IP, EtherNet/IP, PROFINET, IP65/IP67
V430 Code Reader, 5 MP color, Wide view, Fixed focus 81 mm, No outer light, X-Mode decoder, Ethernet TCP/IP, EtherNet/IP, PROFINET, IP65/IP67
V430 Code Reader, 5 MP color, Wide view, Fixed focus 81 mm, White light, X-Mode decoder, Ethernet TCP/IP, EtherNet/IP, PROFINET, IP65/IP67
