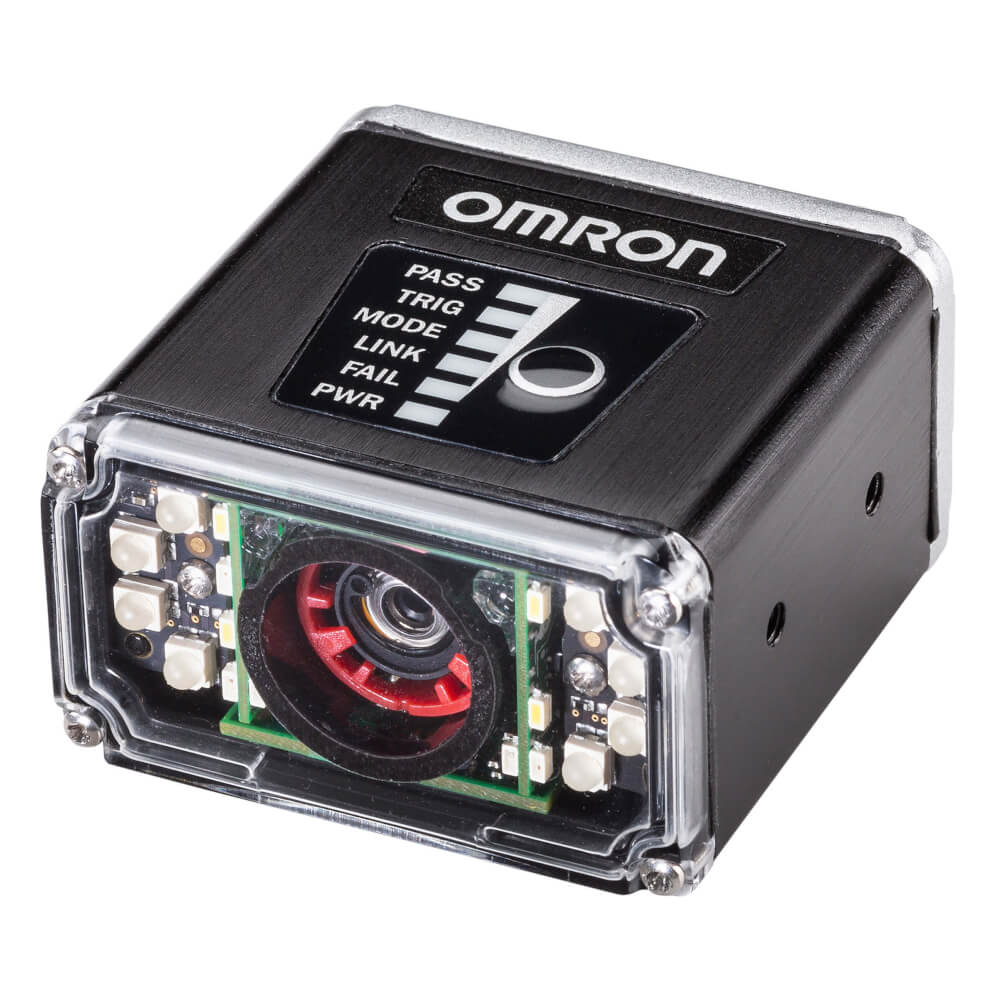

V430 Code Reader, 0.3 MP Monochrome, Medium view, Autofocus 50-300 mm, White light, 1D/2D, Ethernet TCP/IP, EtherNet/IP, PROFINET, IP65/IP67
| Number of pixels | 0.3 MP |
| Camera type | Monochrome |
| Autofocus | ✔ |
| Focus distance | 50-300 mm |
| Field of view (width) | 34-183 mm |
| Decoder type | Plus Mode (high-speed 1D+2D) |
| Frame rate | 60 fps |
| Illumination | White LED |
| Image width | 752 pixels |
| Image height | 480 pixels |
| Shutter type | Global |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, PROFINET Slave, Serial RS-232C |
| Digital output type | PNP |
| Product Height (unpacked) | 25.4 mm |
| Product Width (unpacked) | 44.5 mm |
| Product Depth (unpacked) | 56.9 mm |
| Degree of protection (IP) | IP65/IP67 |
 |
V430-AF11 | Diffuser Installation Kit for V/F4X0-FXXXXXXX-XXX |
|
| V430-AF6 | V/F 4×0-F Standard Red power filter Installation Kit |
|
|
| V430-AF7 | V/F 4×0-F Standard Blue power filter Installation Kit |
|
|
 |
V430-ALB | V/F 4×0-F Blue Standard Light Installation Kit |
|
|
V430-ALI | V/F 4×0-F IR Standard Light Installation Kit |
|
|
V430-ALR | V/F 4×0-F Red Standard Light Installation Kit |
|
|
V430-ALW | V/F 4×0-F White Standard Light Installation Kit |
|
 |
V430-AM2 | V/F 4×0-F 4” (102 mm) Ram Mount Stand |
|
| V430-AM3 | V/F 4×0-F APG Pan and Tilt Camera Mount |
|
|
| V430-AM4 | V/F 4×0-F Nylon Screw and Washer Electrical Isolation Mounting Kit |
|
|
| V430-AM5 | V/F 4×0-F MS-4 / MINI to V/F4XX-F Adapter Plate |
|
|
| V430-AM6 | V/F 4×0-F Smart Ring Light to V/F4XX-F Mounting Bracket |
|
|
| V430-AM7 | V/F 4×0-F QX / Vision HAWK to V/F4XX-F Adapter Plate |
|
 |
V430-AF10 | Front Window Installation Kit for V/F4X0-FXXXXXXX-XXX |
|
Datasheet
EN PDF
V430 Code Reader, 0.3 MP monochrome, Medium view, Fixed focus 102 mm, White light, X-Mode decoder, Ethernet TCP/IP, EtherNet/IP, PROFINET, IP65/IP67
V430 Code Reader, 1.2 MP monochrome, Medium view, Fixed focus 102 mm, Red light, 1D/2D decoder, Ethernet TCP/IP, EtherNet/IP, PROFINET, IP65/IP67
V430 Code Reader, 5 MP color, Medium view, Fixed focus 102 mm, White light, 1D/2D decoder, Ethernet TCP/IP, EtherNet/IP, PROFINET, IP65/IP67
V430 Code Reader, 0.3 MP monochrome, Medium view, Fixed focus 102 mm, No outer light, 1D/2D decoder, Ethernet TCP/IP, EtherNet/IP, PROFINET, IP65/IP67
