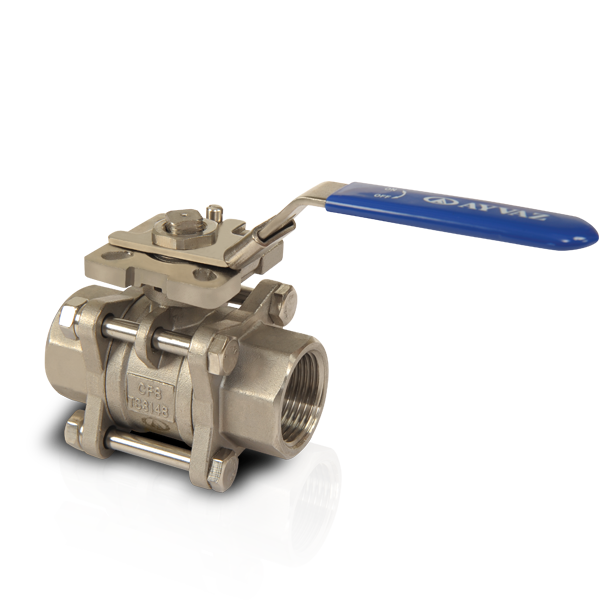

V-3TP Ball Valve

The main part of the ball valve is ball which has a hole in middle. When that ball rotate 90 degree it close or open. They are useful for applications which have to be rapid.

Advantages;
Minimal loss of pressure
Easy to opening and closing
Good leak tightness
Compact design
They tested with water test under 10 bar pressure.
Actuators can assembly easily.

Material Structure:
Body: Stainless steel AISI316 / AISI304
Ball: Stainless steel AISI316 / AISI304

Connection:
Screwed

Nominal Diameter:
DN15 (1/2”) – DN100 (4”)

Working Pressure:
Up to 40 bars

Working Temperature:
-10 to 210ºC

Typical Applications:
Heating air-conditioning systems
Food industry Chemical industry
Shipbuilding
Paper mills
