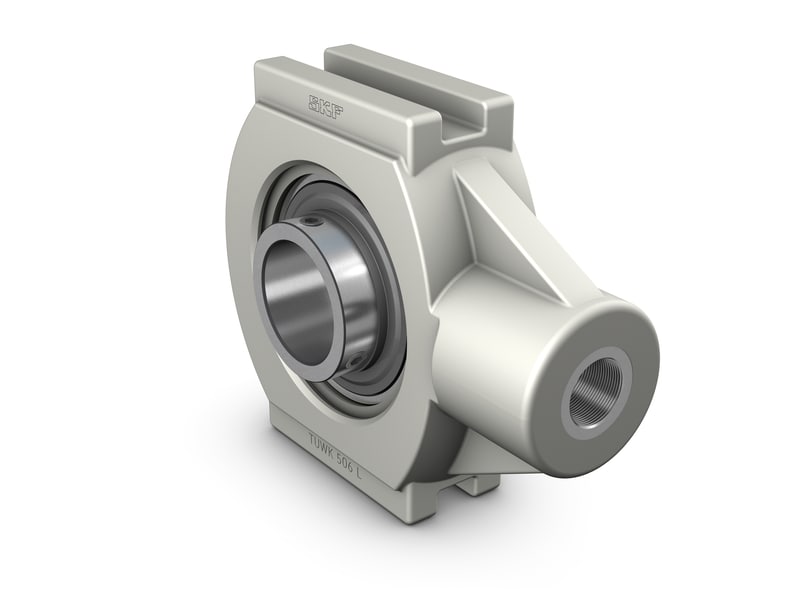

Take-up ball bearing units for SKF Food Line, consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a composite housing. They are strong, yet lightweight, and chemically resistant to detergents and contaminants. Typically mounted in take-up frames, the unit has an inner ring extended on both sides and is locked by tightening a set screw on the inner ring, which makes it easy to mount.
| Compliance with standard |
ISO with boundary dimension deviations
|
| Purpose specific |
For food and beverage applications
|
| Material, housing |
Composite for the SKF Food Line
|
| Sealing, bearing |
Seal and flinger on both sides
|
| Sealing type, bearing |
Contact, multiple
|
| Sealing, unit |
Optional end cover
|
| Coating |
Without
|
| d |
20 mm
|
Bore diameter |
|---|---|---|
| d1 |
≈ 28.2 mm
|
Shoulder diameter of inner ring |
| A |
27.5 mm
|
Overall width |
| A1 |
12 mm
|
Width of piloting groove |
| A2 |
24.5 mm
|
Width of flange in which piloting grooves are provided |
| A5 |
20.3 mm
|
Standout of end cover |
| B |
31 mm
|
Width of inner ring |
| B4 |
4.5 mm
|
Distance from locking device side face to thread centre |
| H |
89 mm
|
Overall height |
| H1 |
76 mm
|
Distance between bottoms of piloting grooves |
| H2 |
36 mm
|
Height of attachment end |
| L |
99 mm
|
Overall length |
| L1 |
64 mm
|
Distance from attachment end face to centre line of spherical seat diameter |
| L3 |
46 mm
|
Length of piloting groove |
| G |
M16
|
Thread size attachment end |
| G1 |
21 mm
|
Thread length |
| s1 |
18.3 mm
|
Distance from locking device side face to raceway centre |
| Basic dynamic load rating | C |
10.8 kN
|
|---|---|---|
| Basic static load rating | C0 |
6.55 kN
|
| Fatigue load limit | Pu |
0.28 kN
|
| Limiting speed |
5 000 r/min
|
|
|
Limiting speed with shaft tolerance h6
|
| Mass bearing unit |
0.34 kg
|
| Set screw | G2 |
M6x0.75
|
|---|---|---|
| Hexagonal key size for set screw |
3 mm
|
|
| Recommended tightening torque for set screw |
4 N·m
|
