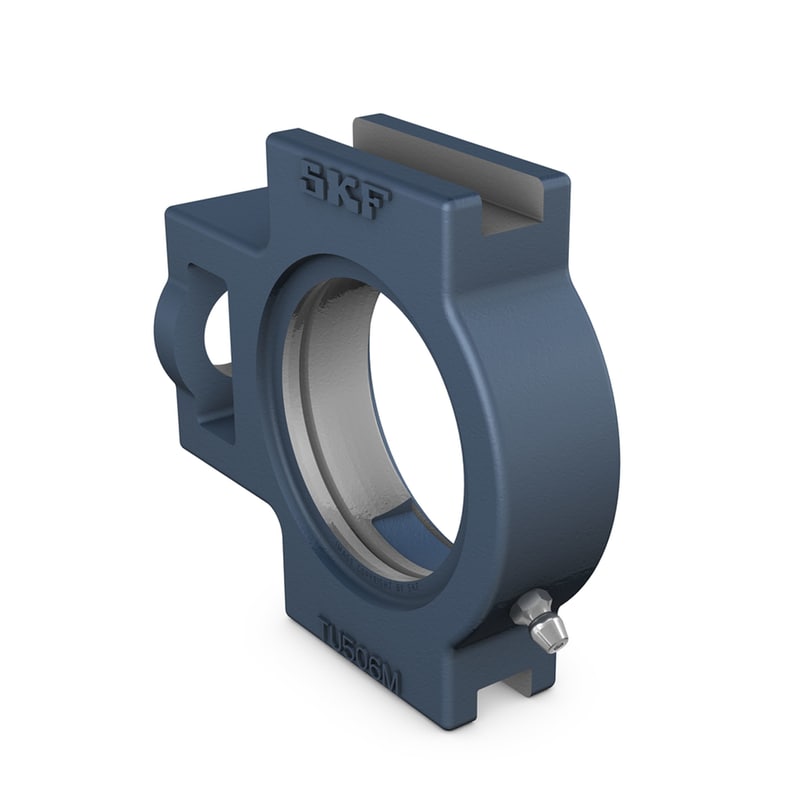

Take-up cast iron housings are non-split housings made of grey cast iron and are designed to provide a high degree of stiffness and accommodate heavy loads acting in different directions. These types of loads are typically encountered in conveyors, roller beds and crushers.
| Material |
Cast iron
|
| Da |
100 mm
|
Diameter of spherical seat |
|---|---|---|
| A |
64 mm
|
Overall width |
| A1 |
27 mm
|
Width of location slot |
| A2 |
41 mm
|
Width of flange in which location slot is provided |
| A5 |
33.5 mm
|
Standout of end cover |
| H |
146 mm
|
Overall height |
| H1 |
130 mm
|
Distance between bottoms of location slot |
| H2 |
102 mm
|
Height of attachment end |
| L |
171 mm
|
Overall length |
| L1 |
106 mm
|
Distance from attachment end face to centre line of spherical seat diameter |
| L2 |
19 mm
|
Length attachment end |
| L3 |
95 mm
|
Length of locations slot |
| N |
35 mm
|
Diameter of attachment bolt hole |
| N1 |
25 mm
|
Length of attachment slot |
| N2 |
64 mm
|
Height of attachment slot |
| RG |
1/4-28 UNF
|
Housing thread for the grease fitting |
|---|---|---|
| R1 |
5 mm
|
Axial position of the housing thread |
| Rα |
30 °
|
Angular position of the housing thread |
| DN |
6.5 mm
|
Diameter of head sphere of grease fitting |
|---|---|---|
| SWN |
7 mm
|
Hexagonal key size for the grease fitting |
| GN |
1/4-28 SAE-LT
|
Thread of the grease fitting |
| Mass housing |
2.85 kg
|
