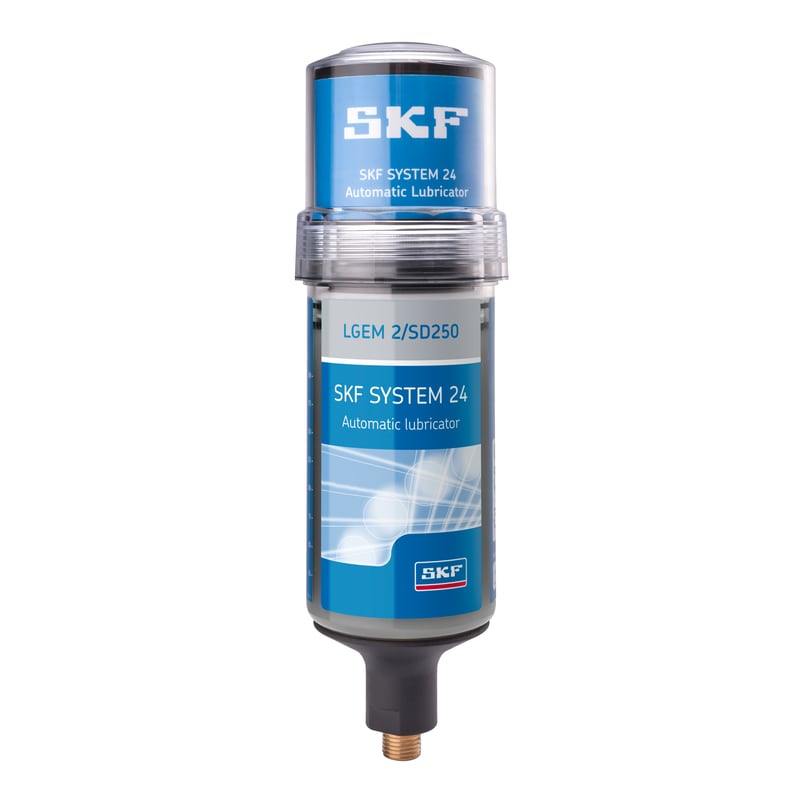

TLSD 250/EM2 is filled with SKF LGEM 2 high viscosity bearing grease with solid lubricants, recommended for low speeds and high loads and vibrations. Our electro-mechanical single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants, both as battery or cable driven. Using automatic lubricators improves employee safety, increases machine reliability and optimizes maintenance operations.
| Lubricant quantity | 250 ml |
| Nominal emptying time | User adjustable: 1, 2, 3, 4, 6, 8, 10 and 12 months |
| Lowest dispense setting | 0.7 ml/d |
| Highest dispense setting | 8.3 ml/d |
| Maximum Pressure | 5 bar |
| Maximum feed line length | 3 m |
| Product weight | 0.72 kg |
| Degree of protection (IP) | IP 65 |
| Lubricant | LGEM 2 |
| Lubricant description | High viscosity bearing grease with solid lubricants for heavy loads, heavy vibrations and slow rotations |
| Lubricant operating temperature range | –20 to +120 °C |
| Ambient temperature range | 0 – 50 °C |
| Recommended applications |
Rolling element bearings running at low speed and very high loads
Jaw crushers
Crane arms
|
| Drive mechanism | Electro mechanical |
| Connecting thread | G 1/4 |
| Battery | Battery pack, TLSD 1-BAT |
| Battery capacity | 2.7 A·h |
| Battery type | Alkaline manganese |
| Battery voltage | 4.5 V |
| Power source | Battery pack |
| LED indicator |
Green LED (every 30 sec): OK
Yellow LED (every 30 sec): Pre-warning low battery power
Yellow LED (every 5 sec): Pre-warning high back pressure
Red LED (every 5 sec): Warning, stopped on error
Red LED (every 2 sec): Warning, empty cartridge
|
