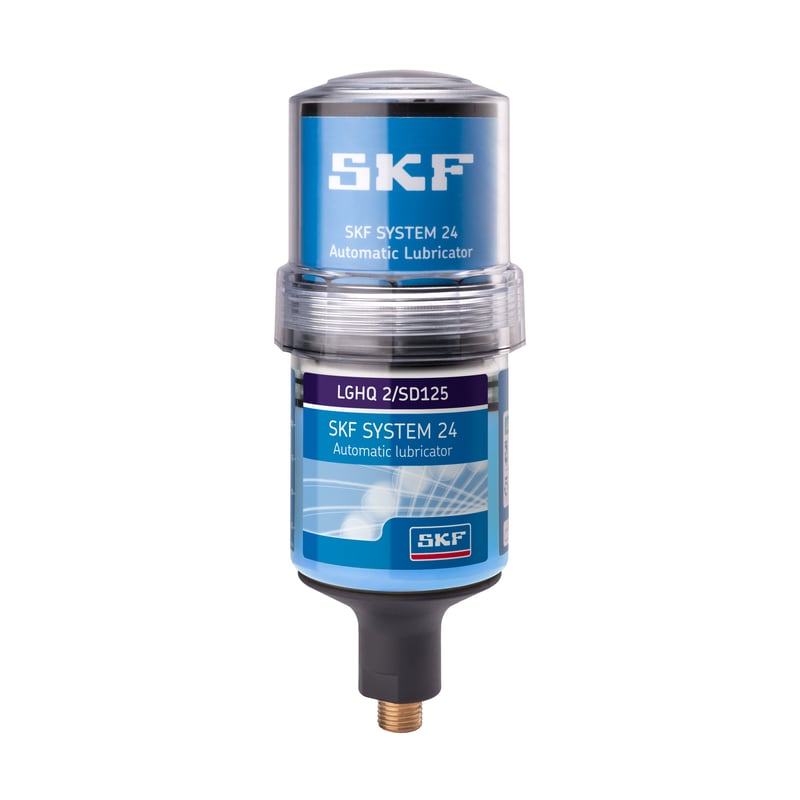

TLSD 125/HQ2 is filled with SKF LGHQ 2 grease for high temperatures and high speeds recommended for electric motors, fans and pumps. Our electro-mechanical single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants, both as battery or cable driven. Using automatic lubricators improves employee safety, increases machine reliability and optimizes maintenance operations.
| Lubricant quantity | 125 ml |
| Nominal emptying time | User adjustable: 1, 2, 3, 4, 6, 8, 10 and 12 months |
| Lowest dispense setting | 0.3 ml/d |
| Highest dispense setting | 4.1 ml/d |
| Maximum Pressure | 5 bar |
| Maximum feed line length | 3 m |
| Product weight | 0.58 kg |
| Degree of protection (IP) | IP 65 |
| Lubricant | LGHQ 2 |
| Lubricant description | Wide temperature range electric motor bearing grease |
| Certifications |
NSF H1
Halal
Kosher
|
| Lubricant operating temperature range | –30 to +160 °C |
| Ambient temperature range | 0 – 50 °C |
| Recommended applications |
Electric motors
Industrial fans
Water pumps
Vertical shaft applications
|
| Drive mechanism | Electro mechanical |
| Connecting thread | G 1/4 |
| Battery | Battery pack, TLSD 1-BAT |
| Battery capacity | 2.7 A·h |
| Battery type | Alkaline manganese |
| Battery voltage | 4.5 V |
| Power source | Battery pack |
| LED indicator |
Green LED (every 30 sec): OK
Yellow LED (every 30 sec): Pre-warning low battery power
Yellow LED (every 5 sec): Pre-warning high back pressure
Red LED (every 5 sec): Warning, stopped on error
Red LED (every 2 sec): Warning, empty cartridge
|
