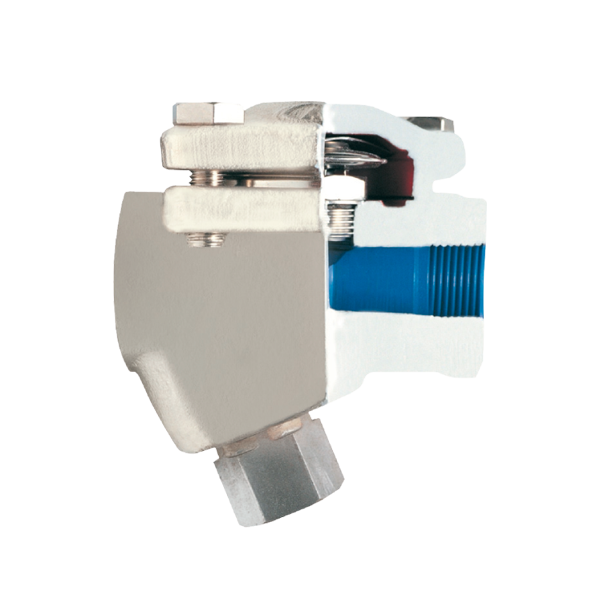

Ayvaz TKK-2Y Thermostatic Steam Trap has high resistance to corrosion and water hammer.

Filter “Y” is the unique difference between the other types and TKK-2Y. It is easy to clean this type of filter. Its body is forged steel the other inner parts are stainless steel. TKK-2Y has 3 capsule options.

“S” type capsule is standard. All inner parts can supply as spare parts. The stainless steel ball inside the specially designed seat acts as check valve.

Ayvaz TKK-2Y should be assembled to the pipe line at horizontal position for working efficiently and long working time. Isolation valves should be used for safety during the maintenance and steam traps changing.

Material Structure:
Forged steel: ASTM A 105 Forged steel
Inner parts: AISI 304 stainless steel

Connection:
Screwed, Butt-welded ends or flanged

Nominal Diameter:
DN15 (1/2”) – DN25 (1”)

Working Pressure:
Up to 32 bars

Working Temperature:
Up to 250 °C

Typical Applications:
Tracing Lines
Drying units
Press units
Steam jacket pipes
Irons
