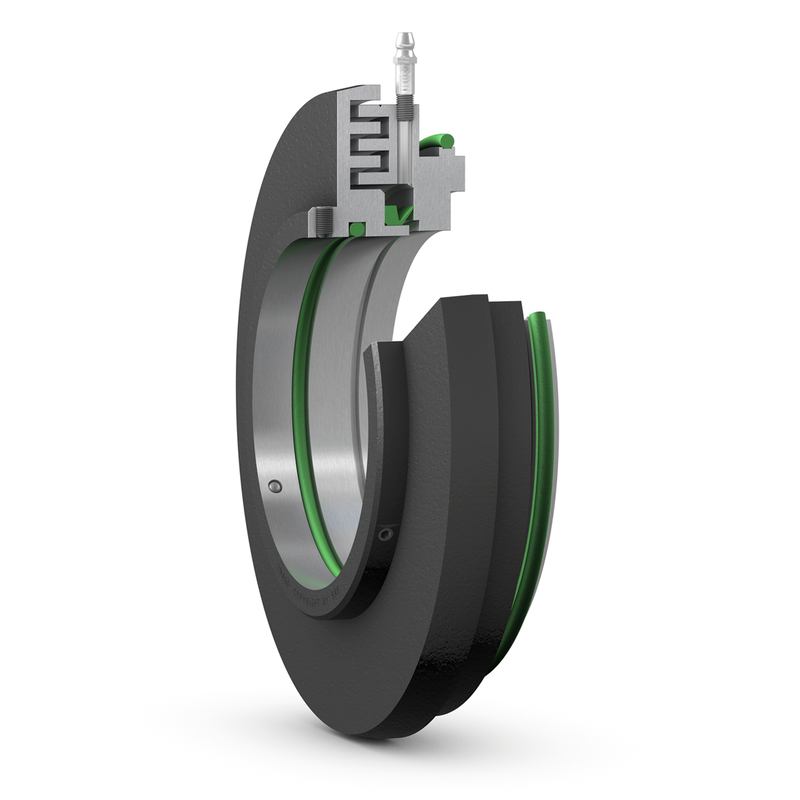

These taconite seals consist of two rings (one stationary and one rotating), which form a very narrow labyrinth between the two rings, which prevents ingress of solid and liquid contaminants, even during high-pressure washdowns. The rotating labyrinth ring carries a V-ring seal that seals against the stationary labyrinth ring. The V-ring seal blocks contaminants from entering the bearing housing and aids the purging of contamination and old grease when the seal is re-greased.
| Material |
Steel with nitrile rubber elements
|
| Grease fitting |
AH 1/8-27 PTF
|
| da |
65 mm
|
Shaft diameter |
|---|---|---|
| Dc |
85.5 mm
|
Diameter of seal groove |
| D |
122 mm
|
Outside diameter |
| D1 |
82 mm
|
Diameter of side face |
| B |
41 mm
|
Width |
| b |
5.2 mm
|
Width of step |
| c |
35 mm
|
Distance to side face |
| h |
43 mm
|
Height to grease fitting from outside diameter of rotating ring |
| Mass |
1.1 kg
|
| Set screws |
M5
|
| Recommended tightening torque for set screw |
4 N·m
|
