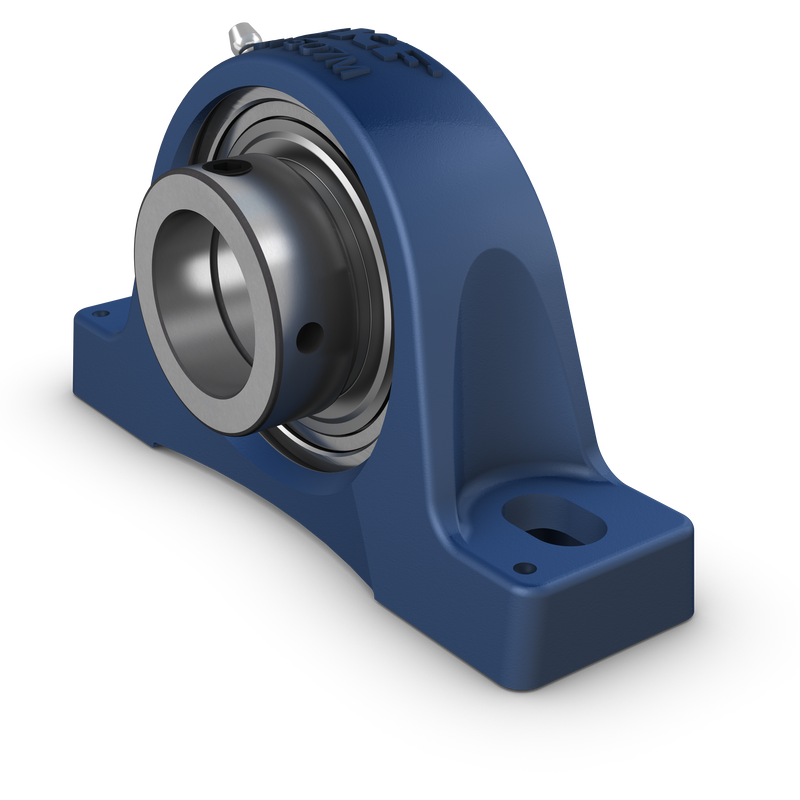

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring and is locked onto the shaft by an eccentric locking collar, making it easy to mount.
| Compliance with standard |
ISO
|
| Purpose specific |
For material handling applications
|
| Material, housing |
Cast iron
|
| Sealing, bearing |
Seal on both sides
|
| Sealing type, bearing |
Contact, standard
|
| Sealing, unit |
Optional end cover
|
| Coating |
Without
|
| d |
55 mm
|
Bore diameter |
|---|---|---|
| d1 |
≈ 69.06 mm
|
Shoulder diameter of inner ring |
| d2 |
74.5 mm
|
Outside diameter of locking ring |
| A |
60 mm
|
Base width |
| A1 |
40 mm
|
Top width |
| A5 |
37.5 mm
|
Standout of end cover |
| B |
32.6 mm
|
Width of inner ring |
| B1 |
48.4 mm
|
Overall bearing width |
| B4 |
7.9 mm
|
Distance from locking device side face to thread centre |
| H |
63.5 mm
|
Height of spherical seat centre |
| H1 |
24 mm
|
Foot height |
| H2 |
126 mm
|
Overall height |
| J |
171.5 mm
|
Distance between attachment bolts |
| J |
max. 181 mm
|
Distance between attachment bolts |
| J |
min. 162 mm
|
Distance between attachment bolts |
| L |
219 mm
|
Overall length |
| N |
18 mm
|
Diameter of attachment bolt hole |
| N1 |
27.5 mm
|
Length of attachment bolt hole |
| s1 |
35.9 mm
|
Distance from locking device side face to raceway centre |
| RG |
1/4-28 UNF
|
Housing thread for the grease fitting |
|---|---|---|
| R1 |
4.5 mm
|
Axial position of the housing thread |
| Rα |
45 °
|
Angular position of the housing thread |
| DN |
6.5 mm
|
Diameter of head sphere of grease fitting |
|---|---|---|
| SWN |
7 mm
|
Hexagonal key size for the grease fitting |
| GN |
1/4-28 SAE-LT
|
Thread of grease fitting |
| J6 |
201 mm
|
Distance of dowel pins |
|---|---|---|
| J7 |
21 mm
|
Axial offset of dowel pins |
| N4 |
4 mm
|
Recommended diameter for dowel pins |
| Basic dynamic load rating | C |
43.6 kN
|
|---|---|---|
| Basic static load rating | C0 |
29 kN
|
| Fatigue load limit | Pu |
1.25 kN
|
| Limiting speed |
3 600 r/min
|
|
|
Limiting speed with shaft tolerance h6
|
| Mass bearing unit |
3.4 kg
|
| Set screw | G2 |
M10x1
|
|---|---|---|
| Hexagonal key size for set screw |
5 mm
|
|
| Recommended tightening torque for set screw |
16.5 N·m
|
|
| Recommended diameter for attachment bolts, mm | G |
16 mm
|
| Recommended diameter for attachment bolts, inch | G |
0.625 in
|
