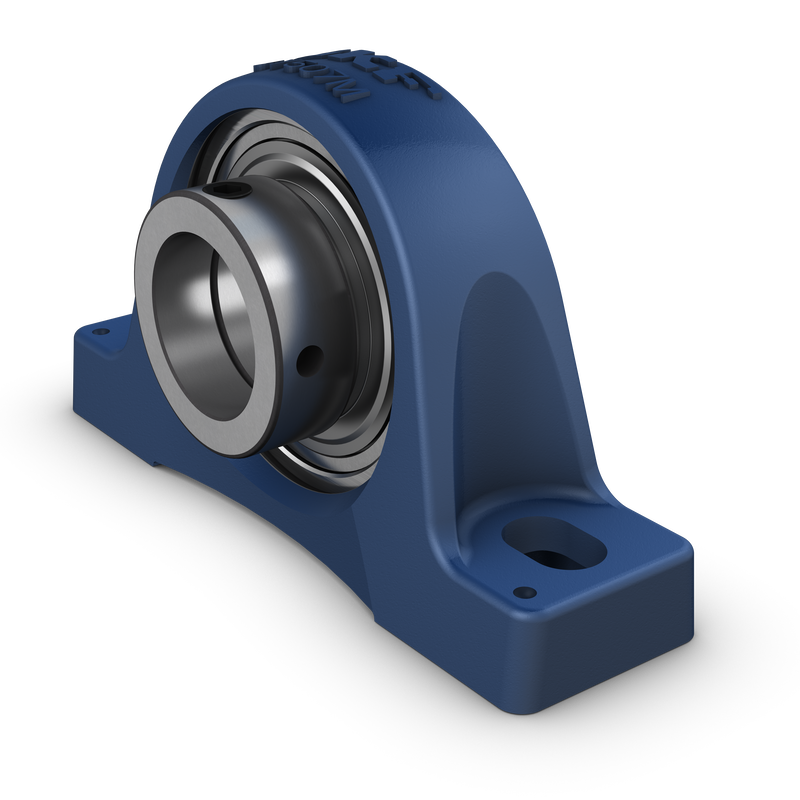

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is intended for use in applications where the direction of rotation is constant. It has an extended inner ring on both sides and is locked onto the shaft by an eccentric locking collar, making it easy to mount.
| Compliance with standard |
ISO
|
| Purpose specific |
For agricultural applications
|
| Material, housing |
Cast iron
|
| Sealing, bearing |
Seal on both sides
|
| Sealing type, bearing |
Contact, 5-lip
|
| Sealing, unit |
Optional end cover
|
| Coating |
Without
|
| d |
40 mm
|
Bore diameter |
|---|---|---|
| d1 |
≈ 51.8 mm
|
Shoulder diameter of inner ring |
| d2 |
56.5 mm
|
Outside diameter of locking ring |
| A |
48 mm
|
Base width |
| A1 |
30 mm
|
Top width |
| A5 |
26 mm
|
Standout of end cover |
| B |
42.8 mm
|
Width of inner ring |
| B1 |
56.3 mm
|
Overall bearing width |
| B4 |
6.75 mm
|
Distance from locking device side face to thread centre |
| H |
49.2 mm
|
Height of spherical seat centre |
| H1 |
19 mm
|
Foot height |
| H2 |
99 mm
|
Overall height |
| J |
135.5 mm
|
Distance between attachment bolts |
| J |
max. 146 mm
|
Distance between attachment bolts |
| J |
min. 125 mm
|
Distance between attachment bolts |
| L |
175 mm
|
Overall length |
| N |
14 mm
|
Diameter of attachment bolt hole |
| N1 |
24.5 mm
|
Length of attachment bolt hole |
| s1 |
34.9 mm
|
Distance from locking device side face to raceway centre |
| RG |
1/4-28 UNF
|
Housing thread for the grease fitting |
|---|---|---|
| R1 |
3.5 mm
|
Axial position of the housing thread |
| Rα |
45 °
|
Angular position of the housing thread |
| J6 |
161 mm
|
Distance of dowel pins |
|---|---|---|
| J7 |
17 mm
|
Axial offset of dowel pins |
| N4 |
4 mm
|
Recommended diameter for dowel pins |
| Basic dynamic load rating | C |
30.7 kN
|
|---|---|---|
| Basic static load rating | C0 |
19 kN
|
| Fatigue load limit | Pu |
0.8 kN
|
| Limiting speed |
950 r/min
|
|
|
Limiting speed with shaft tolerance h6
|
| Mass bearing unit |
1.9 kg
|
| Set screw | G2 |
1/4-28 UNF
|
|---|---|---|
| Hexagonal key size for set screw |
3.175 mm
|
|
| Recommended tightening torque for set screw |
4 N·m
|
|
| Recommended diameter for attachment bolts, mm | G |
12 mm
|
| Recommended diameter for attachment bolts, inch | G |
0.5 in
|
