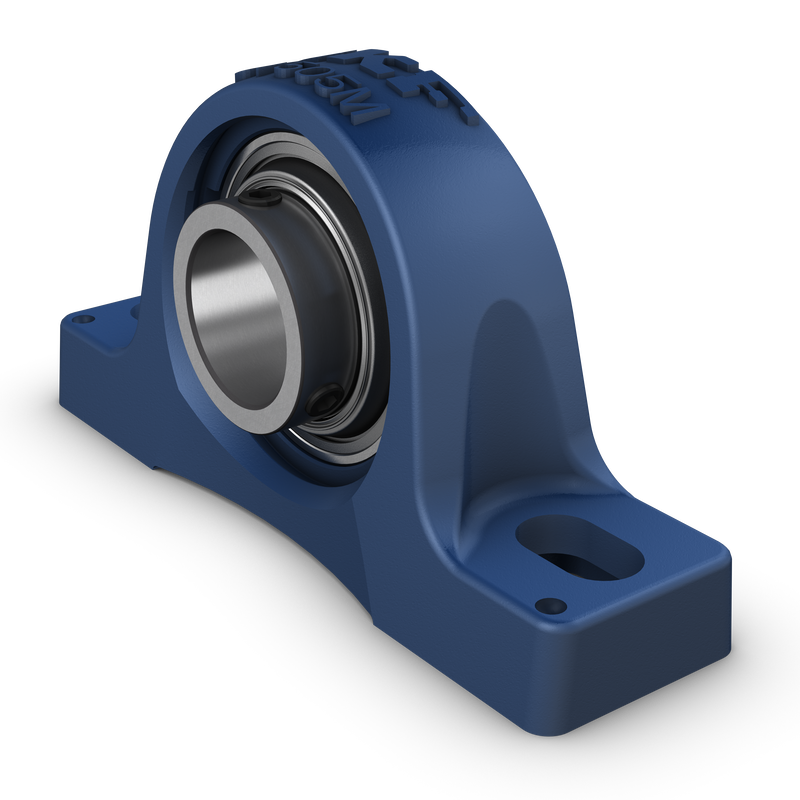

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
| Compliance with standard |
ISO
|
| Purpose specific |
For agricultural applications
|
| Material, housing |
Cast iron
|
| Sealing, bearing |
Seal on both sides
|
| Sealing type, bearing |
Contact, 5-lip
|
| Sealing, unit |
Optional end cover
|
| Coating |
Without
|
| d |
35 mm
|
Bore diameter |
|---|---|---|
| d1 |
≈ 46.1 mm
|
Shoulder diameter of inner ring |
| A |
45 mm
|
Base width |
| A1 |
27 mm
|
Top width |
| A5 |
24.5 mm
|
Standout of end cover |
| B |
42.9 mm
|
Width of inner ring |
| B1 |
42.9 mm
|
Overall bearing width |
| B4 |
6 mm
|
Distance from locking device side face to thread centre |
| H |
47.6 mm
|
Height of spherical seat centre |
| H1 |
19 mm
|
Foot height |
| H2 |
93 mm
|
Overall height |
| J |
126 mm
|
Distance between attachment bolts |
| J |
max. 133 mm
|
Distance between attachment bolts |
| J |
min. 119 mm
|
Distance between attachment bolts |
| L |
160 mm
|
Overall length |
| N |
14 mm
|
Diameter of attachment bolt hole |
| N1 |
21 mm
|
Length of attachment bolt hole |
| s1 |
25.4 mm
|
Distance from locking device side face to raceway centre |
| RG |
1/4-28 UNF
|
Housing thread for the grease fitting |
|---|---|---|
| R1 |
3 mm
|
Axial position of the housing thread |
| Rα |
45 °
|
Angular position of the housing thread |
| J6 |
146 mm
|
Distance of dowel pins |
|---|---|---|
| J7 |
15.5 mm
|
Axial offset of dowel pins |
| N4 |
4 mm
|
Recommended diameter for dowel pins |
| Basic dynamic load rating | C |
25.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
15.3 kN
|
| Fatigue load limit | Pu |
0.655 kN
|
| Limiting speed |
1 100 r/min
|
|
|
Limiting speed with shaft tolerance h6
|
| Mass bearing unit |
1.45 kg
|
| Set screw | G2 |
1/4-28 UNF
|
|---|---|---|
| Hexagonal key size for set screw |
3.175 mm
|
|
| Recommended tightening torque for set screw |
4 N·m
|
|
| Recommended diameter for attachment bolts, mm | G |
12 mm
|
| Recommended diameter for attachment bolts, inch | G |
0.5 in
|
