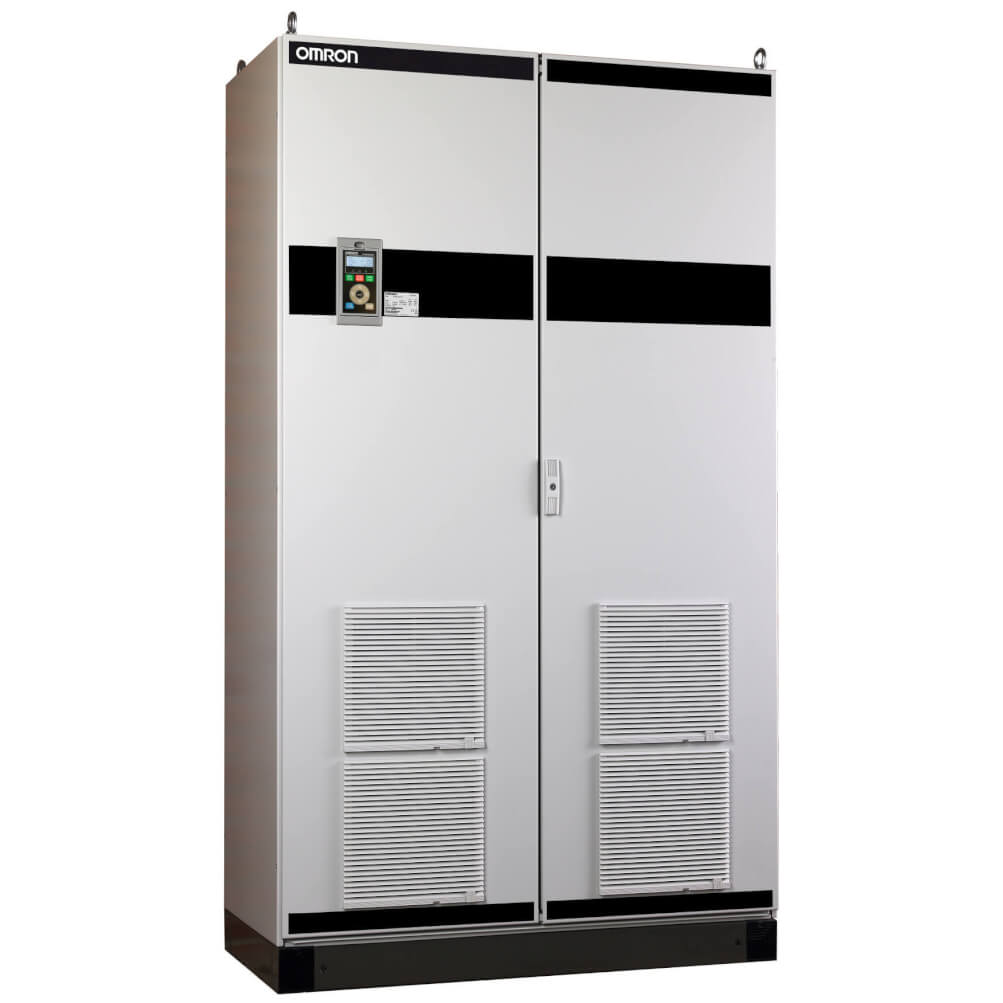

SX inverter IP20, 600 kW, 3~ 690 VAC, direct torque control, built-in filter, max. output freq. 400 Hz
| Drive control method | Vector control |
| Drive supply voltage | 690 V three phase |
| Max. motor output at variable torque (ND) | 600 kW |
| Max. motor output at constant torque (HD) | 450 kW |
| Built in EMC filter | ✔ |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication option(s) | Bluetooth, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MODBUS Slave, MODBUS/TCP, PROFIBUS DP Slave, PROFINET Slave, Serial RS-232C, Serial RS-485 |
| Product Height (unpacked) | 1176 mm |
| Product Width (unpacked) | 730 mm |
| Product Depth (unpacked) | 450 mm |
| Product Weight (unpacked) | 257000 g |
Datasheet
EN PDF
