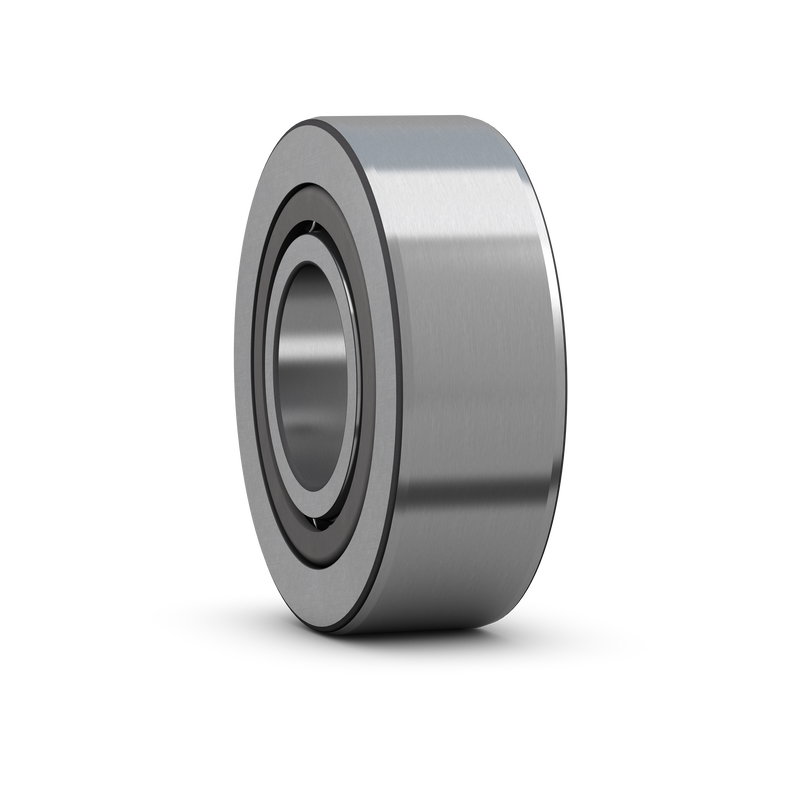

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a single row needle roller bearing with an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied ready-to-mount. The inner ring contains a lubrication hole to facilitate relubrication. The outer ring, the inner ring and the needle roller and cage assembly can be mounted separately.
| D |
30 mm
|
Outside diameter |
|---|---|---|
| d |
10 mm
|
Bore diameter |
| C |
11.8 mm
|
Width outer ring |
| B |
12 mm
|
Width inner ring |
| E |
20 mm
|
Raceway diameter outer ring |
| F |
14 mm
|
Raceway diameter inner ring |
| r1,2 |
min. 0.3 mm
|
Chamfer dimension outer ring |
| r3,4 |
min. 0.3 mm
|
Chamfer dimension inner ring |
| Basic dynamic load rating | C |
8.25 kN
|
|---|---|---|
| Basic static load rating | C0 |
8.8 kN
|
| Fatigue load limit | Pu |
1.04 kN
|
| Maximum dynamic radial load | Fr |
max. 8.5 kN
|
| Maximum static radial load | F0r |
max. 12.2 kN
|
| Limiting speed |
6 000 r/min
|
| Mass support roller |
0.049 kg
|
