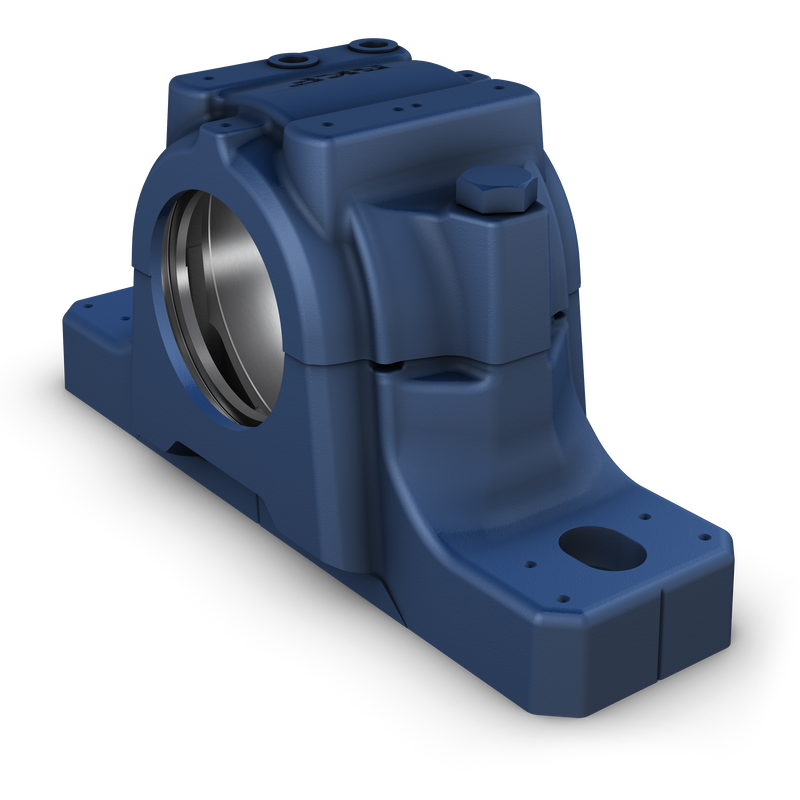

SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.
| Da |
290 mm
|
Diameter of bearing seat |
|---|---|---|
|
G7
|
Tolerance class of bearing seat diameter | |
| Ca |
114 mm
|
Width of bearing seat |
| H1 |
170 mm
|
Centre height of bearing seat |
| Db |
202.5 mm
|
Bore diameter |
|---|---|---|
| A |
235 mm
|
Overall width |
| A1 |
160 mm
|
Foot width |
| G1 |
1/8-27 NPSF
|
Thread of relubrication holes |
| H |
344 mm
|
Overall height |
| H2 |
60 mm
|
Foot height |
| L |
550 mm
|
Overall length |
| J |
470 mm
|
Distance between attachment bolts |
| J1 |
100 mm
|
Axial distance between attachment bolts |
| J2 |
450 mm
|
Distance between attachment bolts |
| A3 |
201 mm
|
Inside width between seal grooves |
|---|---|---|
| A4 |
6 mm
|
Width of seal groove |
| A5 |
11 mm
|
Distance to seal groove back face |
| A6 |
15 mm
|
Width at bore diameter |
| Dc |
212.5 mm
|
Diameter of seal groove |
| J6 |
506 mm
|
Distance between dowel pins |
|---|---|---|
| J7 |
58 mm
|
Axial offset of dowel pins |
| N4 |
max. 12 mm
|
Diameter of dowel pins |
| P0° |
2 340 kN
|
Breaking load at 0° load angle |
|---|---|---|
| P55° |
2 610 kN
|
Breaking load at 55° load angle |
| P90° |
1 548 kN
|
Breaking load at 90° load angle |
| P120° |
1 152 kN
|
Breaking load at 120° load angle |
| P150° |
1 026 kN
|
Breaking load at 150° load angle |
| P180° |
1 296 kN
|
Breaking load at 180° load angle |
| Pa |
846 kN
|
Breaking load, axial |
| Q120° |
1 260 kN
|
Load to reach yield point at 120° load angle |
|---|---|---|
| Q150° |
728 kN
|
Load to reach yield point at 150° load angle |
| Q180° |
630 kN
|
Load to reach yield point at 180° load angle |
| Housing material |
Spheroidal graphite cast iron
|
| Corrosion protection |
Paint – in accordance with ISO 12944-2, corrosivity category C2
|
| Mass housing |
55 kg
|
| Size of cap bolts |
M24x130
|
| Tightening torque for cap bolts |
350 N·m
|
| Size of eye bolt |
M12
|
| Initial grease fill, 20% |
1 300 g
|
| Initial grease fill, 40% |
2 000 g
|
