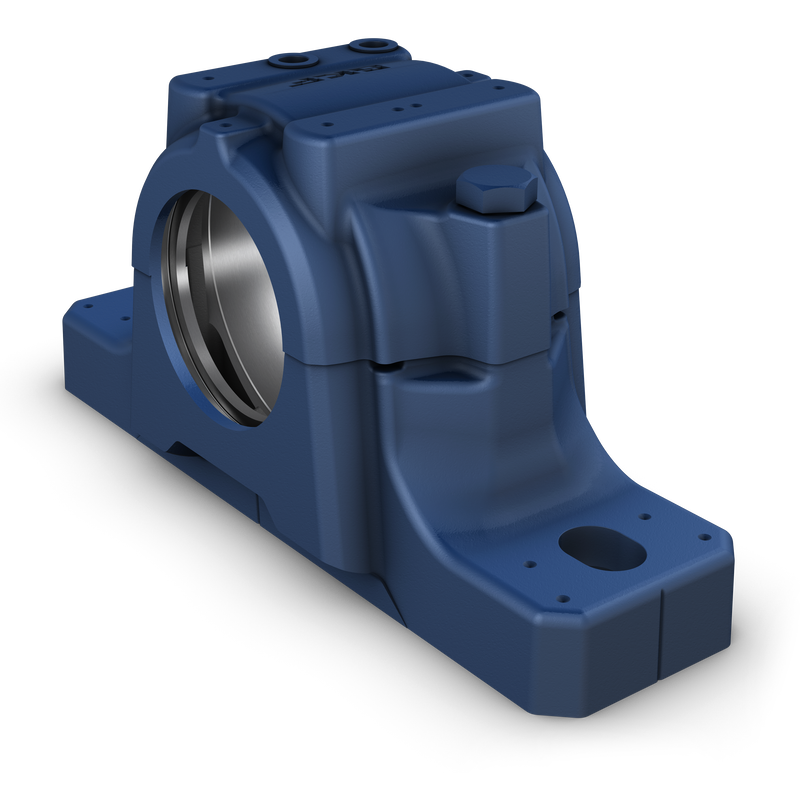

SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.
| Da |
180 mm
|
Diameter of bearing seat |
|---|---|---|
|
G7
|
Tolerance class of bearing seat diameter | |
| Ca |
70 mm
|
Width of bearing seat |
| H1 |
112 mm
|
Centre height of bearing seat |
| Db |
137.5 mm
|
Bore diameter |
|---|---|---|
| A |
160 mm
|
Overall width |
| A1 |
110 mm
|
Foot width |
| G1 |
1/8-27 NPSF
|
Thread of relubrication holes |
| H |
218 mm
|
Overall height |
| H2 |
40 mm
|
Foot height |
| L |
380 mm
|
Overall length |
| J |
320 mm
|
Distance between attachment bolts |
| J1 |
66 mm
|
Axial distance between attachment bolts |
| J2 |
300 mm
|
Distance between attachment bolts |
| A3 |
131 mm
|
Inside width between seal grooves |
|---|---|---|
| A4 |
6 mm
|
Width of seal groove |
| A5 |
10 mm
|
Distance to seal groove back face |
| A6 |
14 mm
|
Width at bore diameter |
| Dc |
147.5 mm
|
Diameter of seal groove |
| J6 |
348 mm
|
Distance between dowel pins |
|---|---|---|
| J7 |
39 mm
|
Axial offset of dowel pins |
| N4 |
max. 8 mm
|
Diameter of dowel pins |
| P0° |
846 kN
|
Breaking load at 0° load angle |
|---|---|---|
| P55° |
1 116 kN
|
Breaking load at 55° load angle |
| P90° |
666 kN
|
Breaking load at 90° load angle |
| P120° |
504 kN
|
Breaking load at 120° load angle |
| P150° |
450 kN
|
Breaking load at 150° load angle |
| P180° |
558 kN
|
Breaking load at 180° load angle |
| Pa |
360 kN
|
Breaking load, axial |
| Q120° |
868 kN
|
Load to reach yield point at 120° load angle |
|---|---|---|
| Q150° |
504 kN
|
Load to reach yield point at 150° load angle |
| Q180° |
434 kN
|
Load to reach yield point at 180° load angle |
| Housing material |
Spheroidal graphite cast iron
|
| Corrosion protection |
Paint – in accordance with ISO 12944-2, corrosivity category C2
|
| Mass housing |
17.6 kg
|
| Size of cap bolts |
M20x100
|
| Tightening torque for cap bolts |
200 N·m
|
| Initial grease fill, 20% |
390 g
|
| Initial grease fill, 40% |
630 g
|
