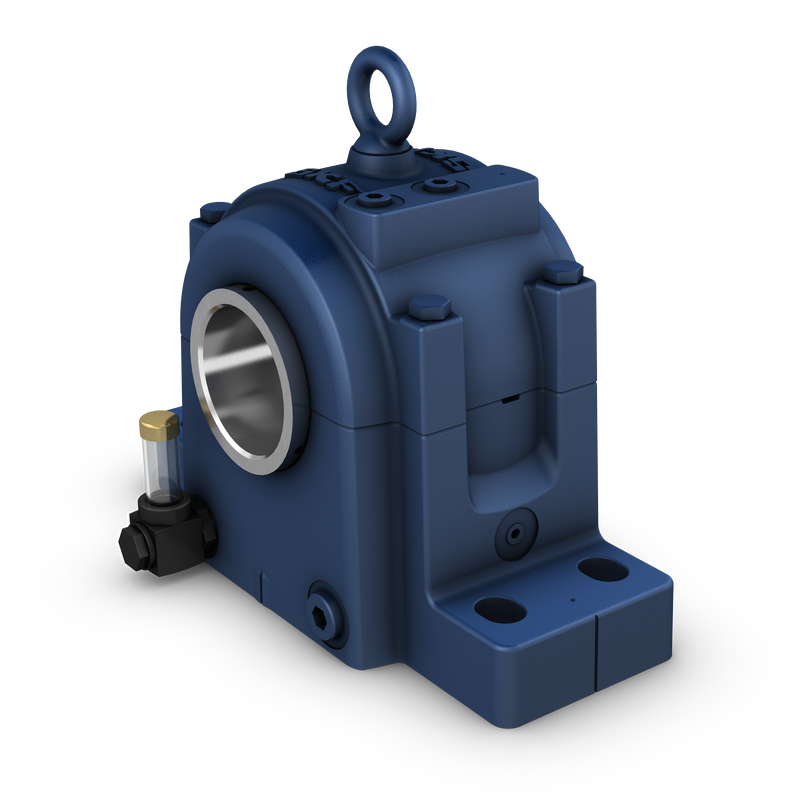

The combination of SKF housings, bearings and accessories is an excellent choice for a customized, reliable and sustainable solution for your shaft arrangement. SKF has a wide range of high-quality housing designs and sizes to meet your specific challenge – including specially designed housings for special applications. The bearings reflect SKF’s state-of-the-art technology, providing the highest-quality bearings. You need to buy each part in the combination separately.</s
| da |
170 mm
|
Shaft diameter |
|---|---|---|
| Ca |
120 mm
|
Width of bearing seat |
| Da |
340 mm
|
Diameter of bearing seat |
| A |
330 mm
|
Width |
| A1 |
250 mm
|
Foot width |
| A2 |
225 mm
|
Distance housing centreline to oil level gauge side face |
| AA |
350 mm
|
Width for shaft end arrangement |
| AB |
370 mm
|
Width for through shaft arrangement |
| d1 |
220 mm
|
Outside diameter of seal |
| B1 |
139 mm
|
Width of seal |
| H |
480 mm
|
Height |
| H0 |
570 mm
|
Height including eye bolt |
| H1 |
260 mm
|
Centre height of bearing seat |
| H2 |
85 mm
|
Foot height |
| J |
590 mm
|
Distance between attachment bolts |
| J1 |
150 mm
|
Distance between attachment bolts |
| L |
720 mm
|
Length |
| N |
50 mm
|
Length of attachment bolt hole |
| N1 |
42 mm
|
Width of attachment bolt hole |
| S |
185 mm
|
Distance bearing centreline to seal end face |
| ba |
82 mm
|
Distance bearing centre line to shaft end |
|---|---|---|
| bb |
267 mm
|
Distance shaft end to seal side face |
| s2 |
52.5 mm
|
Distance shaft end to end cover |
| J6 |
640 mm
|
Distance between dowel pins |
|---|---|---|
| N4 |
max. 20 mm
|
Diameter of dowel pins |
| PG |
G 3/4
|
Size of tapped oil inlet hole in housing cap |
|---|---|---|
| P1 |
85 mm
|
Distance housing centre line to oil inlet, housing cap |
| P2 |
98 mm
|
Distance housing centre line to oil inlet, housing cap |
| RG |
G 1.1/2
|
Size of tapped oil outlet hole in housing base |
| R1 |
298 mm
|
Distance between oil outlets in housing base |
| R2 |
41 mm
|
Height of oil outlet position |
| O1 |
166 mm
|
Height housing bottom to oil level gauge top |
| O2 |
225 mm
|
Distance housing centre line to oil level gauge end |
| P55° |
3 750 kN
|
Breaking load |
|---|---|---|
| P90° |
1 530 kN
|
Breaking load |
| P120° |
1 040 kN
|
Breaking load |
| P150° |
960 kN
|
Breaking load |
| P180° |
1 250 kN
|
Breaking load |
| Pa |
500 kN
|
Breaking load |
| Q120° |
1 800 kN
|
Load carrying ability of cap bolts |
|---|---|---|
| Q150° |
1 040 kN
|
Load carrying ability of cap bolts |
| Q180° |
900 kN
|
Load carrying ability of cap bolts |
| Mass housing |
249 kg
|
| Size of cap bolt |
M 24×160
|
|
| Recommended tightening torque for cap bolts |
350 N·m
|
|
| Recommended diameter for attachment bolts | G |
36 mm
|
| Recommended tightening torque for attachment bolts |
2 280 N·m
|
|
| Size of eye bolt |
M 24
|
|
| Oil level |
min. 88 mm
|
|
| Oil fill |
min. 3.1 l
|
|
| Oil level |
max. 120 mm
|
|
| Oil fill |
max. 4.5 l
|
