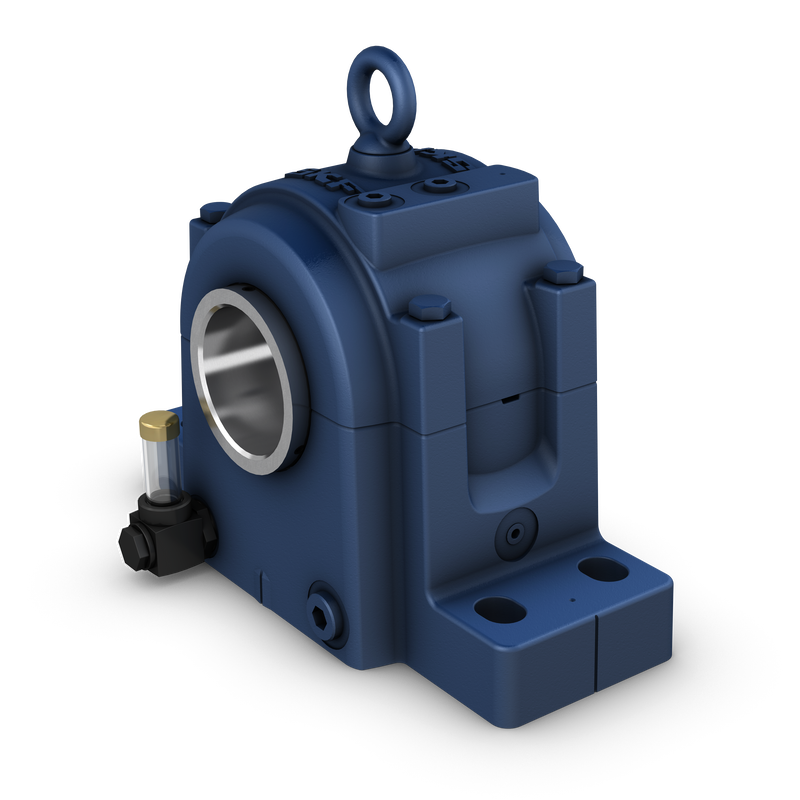

The combination of SKF housings, bearings and accessories is an excellent choice for a customized, reliable and sustainable solution for your shaft arrangement. SKF has a wide range of high-quality housing designs and sizes to meet your specific challenge – including specially designed housings for special applications. The bearings reflect SKF’s state-of-the-art technology, providing the highest-quality bearings. You need to buy each part in the combination separately.
| da |
140 mm
|
Shaft diameter |
|---|---|---|
| Ca |
90 mm
|
Width of bearing seat |
| Da |
250 mm
|
Diameter of bearing seat |
| A |
260 mm
|
Width |
| A1 |
190 mm
|
Foot width |
| A2 |
187 mm
|
Distance housing centreline to oil level gauge side face |
| AA |
270 mm
|
Width for shaft end arrangement |
| AB |
280 mm
|
Width for through shaft arrangement |
| d1 |
160 mm
|
Outside diameter of seal |
| B1 |
106 mm
|
Width of seal |
| s2 |
42 mm
|
Distance shaft end to end cover |
| H |
355 mm
|
Height |
| H0 |
426 mm
|
Height including eye bolt |
| H1 |
190 mm
|
Centre height of bearing seat |
| H2 |
65 mm
|
Foot height |
| J |
415 mm
|
Distance between attachment bolts |
| J1 |
100 mm
|
Distance between attachment bolts |
| L |
500 mm
|
Length |
| N |
42 mm
|
Length of attachment bolt hole |
| N1 |
35 mm
|
Width of attachment bolt hole |
| S |
140 mm
|
Distance bearing centreline to seal end face |
| r |
1.6 mm
|
Radius of shaft fillet |
| ba |
63 mm
|
Distance bearing centre line to shaft end |
|---|---|---|
| bb |
203 mm
|
Distance shaft end to seal side face |
| bc |
170 mm
|
Width of shaft seat |
| db |
138 mm
|
Shaft diameter |
| dc |
min. 148 mm
|
Shaft diameter |
| Ga |
M 140×2
|
Thread size on shaft end |
| Gb |
32 mm
|
Thread length on shaft end |
| J6 |
430 mm
|
Distance between dowel pins |
|---|---|---|
| N4 |
max. 8 mm
|
Diameter of dowel pins |
| PG |
G 3/8
|
Size of tapped oil inlet hole in housing cap |
|---|---|---|
| P1 |
65 mm
|
Distance housing centre line to oil inlet, housing cap |
| P2 |
72 mm
|
Distance housing centre line to oil inlet, housing cap |
| RG |
G 3/4
|
Size of tapped oil outlet hole in housing base |
| R1 |
200 mm
|
Distance between oil outlets in housing base |
| R2 |
26 mm
|
Height of oil outlet position |
| O1 |
121 mm
|
Height housing bottom to oil level gauge top |
| O2 |
187 mm
|
Distance housing centre line to oil level gauge end |
| P55° |
2 550 kN
|
Breaking load |
|---|---|---|
| P90° |
1 020 kN
|
Breaking load |
| P120° |
700 kN
|
Breaking load |
| P150° |
650 kN
|
Breaking load |
| P180° |
850 kN
|
Breaking load |
| Pa |
340 kN
|
Breaking load |
| Q120° |
1 250 kN
|
Load carrying ability of cap bolts |
|---|---|---|
| Q150° |
720 kN
|
Load carrying ability of cap bolts |
| Q180° |
620 kN
|
Load carrying ability of cap bolts |
| Mass housing |
100 kg
|
| Size of cap bolt |
M 20×130
|
|
| Recommended tightening torque for cap bolts |
200 N·m
|
|
| Recommended diameter for attachment bolts | G |
30 mm
|
| Recommended tightening torque for attachment bolts |
1 310 N·m
|
|
| Size of eye bolt |
M 20
|
|
| Oil level |
63 mm
|
|
| Oil fill |
1 l
|
|
| Oil level |
85 mm
|
|
| Oil fill |
1.5 l
|
