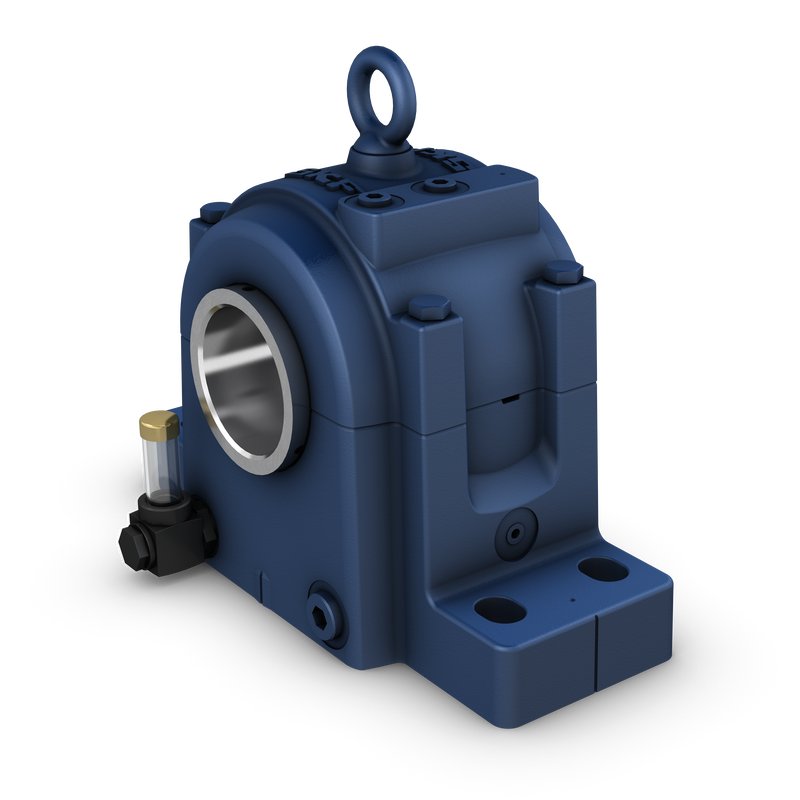

The combination of SKF housings, bearings and accessories is an excellent choice for a customized, reliable and sustainable solution for your shaft arrangement. SKF has a wide range of high-quality housing designs and sizes to meet your specific challenge – including specially designed housings for special applications. The bearings reflect SKF’s state-of-the-art technology, providing the highest-quality bearings. You need to buy each part in the combination separately.
| da |
110 mm
|
Shaft diameter |
|---|---|---|
| Ca |
71 mm
|
Width of bearing seat |
| Da |
200 mm
|
Diameter of bearing seat |
| A |
213 mm
|
Width |
| A1 |
145 mm
|
Foot width |
| A2 |
163 mm
|
Distance housing centreline to oil level gauge side face |
| AA |
221 mm
|
Width for shaft end arrangement |
| AB |
229 mm
|
Width for through shaft arrangement |
| d1 |
120 mm
|
Outside diameter of seal |
| B1 |
88 mm
|
Width of seal |
| s2 |
32.5 mm
|
Distance shaft end to end cover |
| H |
290 mm
|
Height |
| H0 |
343 mm
|
Height including eye bolt |
| H1 |
160 mm
|
Centre height of bearing seat |
| H2 |
50 mm
|
Foot height |
| J |
347 mm
|
Distance between attachment bolts |
| J1 |
75 mm
|
Distance between attachment bolts |
| L |
420 mm
|
Length |
| N |
32 mm
|
Length of attachment bolt hole |
| N1 |
26 mm
|
Width of attachment bolt hole |
| S |
114.5 mm
|
Distance bearing centreline to seal end face |
| r |
1.6 mm
|
Radius of shaft fillet |
| ba |
52 mm
|
Distance bearing centre line to shaft end |
|---|---|---|
| bb |
167 mm
|
Distance shaft end to seal side face |
| bc |
138 mm
|
Width of shaft seat |
| db |
108 mm
|
Shaft diameter |
| dc |
min. 118 mm
|
Shaft diameter |
| Ga |
M 110×2
|
Thread size on shaft end |
| Gb |
28 mm
|
Thread length on shaft end |
| J6 |
370 mm
|
Distance between dowel pins |
|---|---|---|
| N4 |
max. 8 mm
|
Diameter of dowel pins |
| PG |
G 3/8
|
Size of tapped oil inlet hole in housing cap |
|---|---|---|
| P1 |
55 mm
|
Distance housing centre line to oil inlet, housing cap |
| P2 |
53 mm
|
Distance housing centre line to oil inlet, housing cap |
| RG |
G 3/4
|
Size of tapped oil outlet hole in housing base |
| R1 |
162 mm
|
Distance between oil outlets in housing base |
| R2 |
23 mm
|
Height of oil outlet position |
| O1 |
98 mm
|
Height housing bottom to oil level gauge top |
| O2 |
163 mm
|
Distance housing centre line to oil level gauge end |
| P55° |
1 260 kN
|
Breaking load |
|---|---|---|
| P90° |
500 kN
|
Breaking load |
| P120° |
350 kN
|
Breaking load |
| P150° |
320 kN
|
Breaking load |
| P180° |
420 kN
|
Breaking load |
| Pa |
170 kN
|
Breaking load |
| Q120° |
440 kN
|
Load carrying ability of cap bolts |
|---|---|---|
| Q150° |
250 kN
|
Load carrying ability of cap bolts |
| Q180° |
220 kN
|
Load carrying ability of cap bolts |
| Mass housing |
52 kg
|
| Size of cap bolt |
M 12×90
|
|
| Recommended tightening torque for cap bolts |
80 N·m
|
|
| Recommended diameter for attachment bolts | G |
24 mm
|
| Recommended tightening torque for attachment bolts |
665 N·m
|
|
| Size of eye bolt |
M 12
|
|
| Oil level |
53 mm
|
|
| Oil fill |
0.6 l
|
|
| Oil level |
77 mm
|
|
| Oil fill |
0.9 l
|
