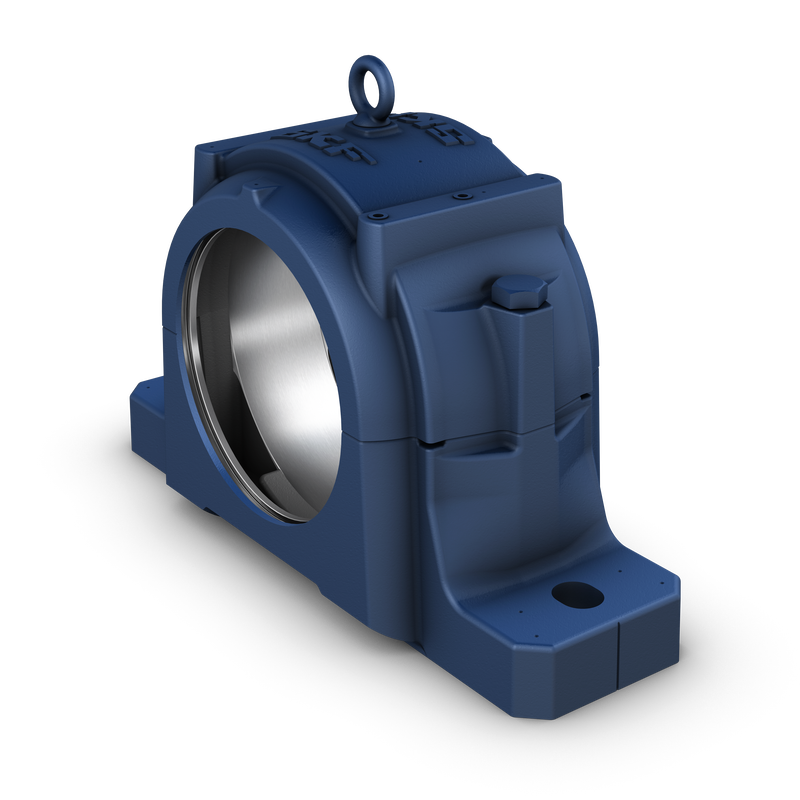

The combination of SKF housings, bearings and accessories is an excellent choice for a customized, reliable and sustainable solution for your shaft arrangement. SKF has a wide range of high-quality housing designs and sizes to meet your specific challenge – including specially designed housings for special applications. The bearings reflect SKF’s state-of-the-art technology, providing the highest-quality bearings. You need to buy each part in the combination separately.</s
| da |
240 mm
|
Shaft diameter |
|---|---|---|
| Ca |
124 mm
|
Width of bearing seat |
| Da |
400 mm
|
Diameter of bearing seat |
| A |
290 mm
|
Width |
| A1 |
220 mm
|
Foot width |
| H |
475 mm
|
Height |
| H1 |
240 mm
|
Centre height of bearing seat |
| H2 |
80 mm
|
Foot height |
| J |
680 mm
|
Distance between attachment bolts |
| L |
820 mm
|
Length |
| N |
70 mm
|
Length of attachment bolt hole |
| N1 |
48 mm
|
Width of attachment bolt hole |
| ba |
101 mm
|
Distance bearing centre line to shaft end |
|---|---|---|
| bc |
120 mm
|
Distance bearing centre line to end cover |
| J6 |
760 mm
|
Distance between dowel pins |
|---|---|---|
| J7 |
80 mm
|
Axial offset of dowel pins |
| N4 |
max. 16 mm
|
Diameter of dowel pins |
| A2L |
312 mm
|
Width across labyrinth seals |
|---|---|---|
| A2T |
390 mm
|
Width across taconite seals |
| d2 |
378 mm
|
Diameter of seal |
| P55° |
2 120 kN
|
Breaking load |
|---|---|---|
| P90° |
1 270 kN
|
Breaking load |
| P120° |
950 kN
|
Breaking load |
| P150° |
850 kN
|
Breaking load |
| P180° |
1 060 kN
|
Breaking load |
| Pa |
370 kN
|
Breaking load |
| Q120° |
2 100 kN
|
Load carrying ability of cap bolts |
|---|---|---|
| Q150° |
1 200 kN
|
Load carrying ability of cap bolts |
| Q180° |
1 050 kN
|
Load carrying ability of cap bolts |
| Mass housing |
162 kg
|
| Size of cap bolt |
M 36 x 200
|
|
| Recommended tightening torque for cap bolts |
600 N·m
|
|
| Recommended diameter for attachment bolts | G |
42 mm
|
| Recommended tightening torque for attachment bolts |
3 640 N·m
|
|
| Size of eye bolt |
M12
|
|
| Initial grease fill, 20% |
2 100 g
|
|
| Initial grease fill, 40% |
3 800 g
|
