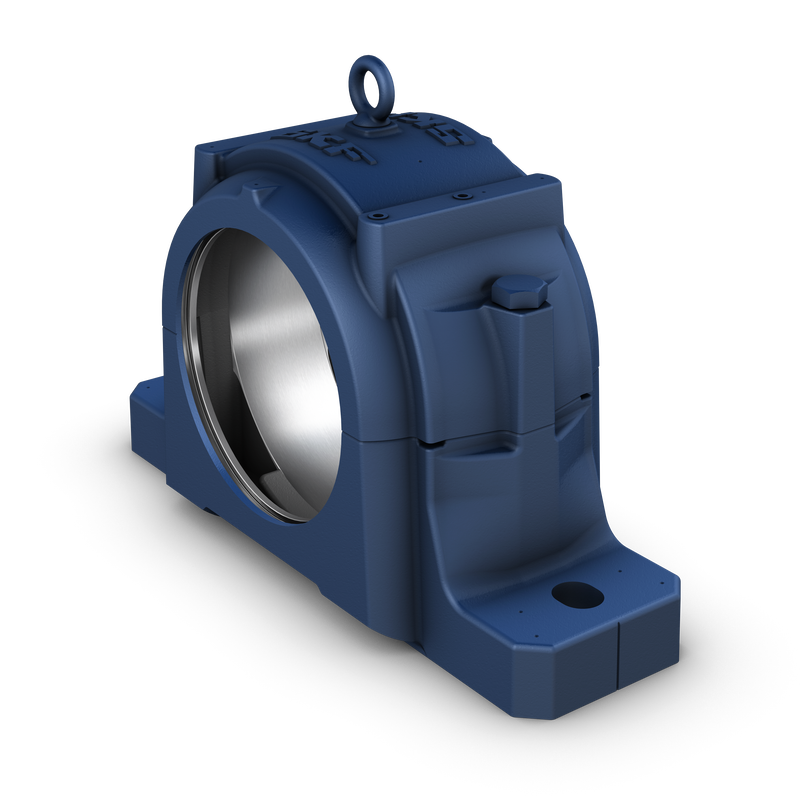

The combination of SKF housings, bearings and accessories is an excellent choice for a customized, reliable and sustainable solution for your shaft arrangement. SKF has a wide range of high-quality housing designs and sizes to meet your specific challenge – including specially designed housings for special applications. The bearings reflect SKF’s state-of-the-art technology, providing the highest-quality bearings. You need to buy each part in the combination separately.</s
| da |
160 mm
|
Shaft diameter |
|---|---|---|
| Ca |
94 mm
|
Width of bearing seat |
| Da |
280 mm
|
Diameter of bearing seat |
| A |
225 mm
|
Width |
| A1 |
160 mm
|
Foot width |
| H |
342 mm
|
Height |
| H1 |
170 mm
|
Centre height of bearing seat |
| H2 |
60 mm
|
Foot height |
| J |
470 mm
|
Distance between attachment bolts |
| L |
550 mm
|
Length |
| N |
42 mm
|
Length of attachment bolt hole |
| N1 |
35 mm
|
Width of attachment bolt hole |
| ba |
69 mm
|
Distance bearing centre line to shaft end |
|---|---|---|
| bc |
94 mm
|
Distance bearing centre line to end cover |
| J6 |
506 mm
|
Distance between dowel pins |
|---|---|---|
| J7 |
58 mm
|
Axial offset of dowel pins |
| N4 |
max. 12 mm
|
Diameter of dowel pins |
| A2L |
245 mm
|
Width across labyrinth seals |
|---|---|---|
| A2T |
315 mm
|
Width across taconite seals |
| d2 |
290 mm
|
Diameter of seal |
| P55° |
1 160 kN
|
Breaking load |
|---|---|---|
| P90° |
700 kN
|
Breaking load |
| P120° |
520 kN
|
Breaking load |
| P150° |
460 kN
|
Breaking load |
| P180° |
580 kN
|
Breaking load |
| Pa |
200 kN
|
Breaking load |
| Q120° |
900 kN
|
Load carrying ability of cap bolts |
|---|---|---|
| Q150° |
520 kN
|
Load carrying ability of cap bolts |
| Q180° |
450 kN
|
Load carrying ability of cap bolts |
| Mass housing |
58.5 kg
|
| Size of cap bolt |
M 24 x 130
|
|
| Recommended tightening torque for cap bolts |
350 N·m
|
|
| Recommended diameter for attachment bolts | G |
30 mm
|
| Recommended tightening torque for attachment bolts |
1 310 N·m
|
|
| Size of eye bolt |
M12
|
|
| Initial grease fill, 20% |
950 g
|
|
| Initial grease fill, 40% |
1 800 g
|
