The combination of SKF housings, bearings and accessories is an excellent choice for a customized, reliable and sustainable solution for your shaft arrangement. SKF has a wide range of high-quality housing designs and sizes to meet your specific challenge – including specially designed housings for special applications. The bearings reflect SKF’s state-of-the-art technology, providing the highest-quality bearings. You need to buy each part in the combination separately.

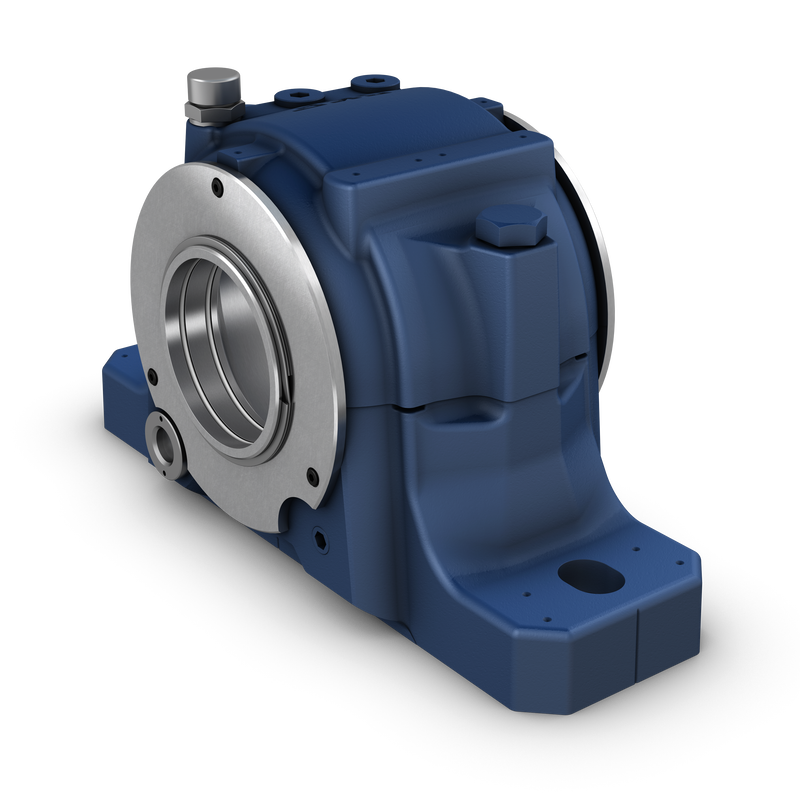

| Housing including seals | SNL 530 TURU |
| – included oil seal | 2 x TSN 530 U |
| Bearing | 22230 CCK/W33 |
| Adapter sleeve | H 3130 |
| Locating ring | 2 x FRB 16.5/270 |
| End cover |
ASNH 530 R
|
| da |
135 mm
|
Shaft diameter |
|---|---|---|
| Ca |
106 mm
|
Width of bearing seat |
| Da |
270 mm
|
Diameter of bearing seat |
| A1 |
160 mm
|
Foot width |
| A2 |
241 mm
|
Width across oil seals |
| H |
323 mm
|
Height |
| H1 |
160 mm
|
Centre height of bearing seat |
| H2 |
60 mm
|
Foot height |
| J |
450 mm
|
Distance between attachment bolts |
| L |
530 mm
|
Length |
| N |
42 mm
|
Length of attachment bolt hole |
| N1 |
35 mm
|
Width of attachment bolt hole |
| J6 |
486 mm
|
Distance between dowel pins |
|---|---|---|
| J7 |
58 mm
|
Axial offset of dowel pins |
| N4 |
max. 12 mm
|
Diameter of dowel pins |
| P0° |
1 100 kN
|
Breaking load |
|---|---|---|
| P55° |
1 200 kN
|
Breaking load |
| P90° |
730 kN
|
Breaking load |
| P120° |
540 kN
|
Breaking load |
| P150° |
480 kN
|
Breaking load |
| P180° |
600 kN
|
Breaking load |
| Pa |
390 kN
|
Breaking load |
| Q120° |
900 kN
|
Load carrying ability of cap bolts |
|---|---|---|
| Q150° |
500 kN
|
Load carrying ability of cap bolts |
| Q180° |
450 kN
|
Load carrying ability 0f cap bolts |
| Mass housing |
49 kg
|
| Size of cap bolt |
M 24×130
|
|
| Recommended tightening torque for cap bolts |
350 N·m
|
|
| Recommended diameter for attachment bolts | G |
30 mm
|
| Recommended tightening torque for attachment bolts |
1 310 N·m
|
|
| Size of eye bolt |
M 12
|
|
| Oil level |
min. 48 mm
|
|
| Oil level |
max. 54 mm
|
