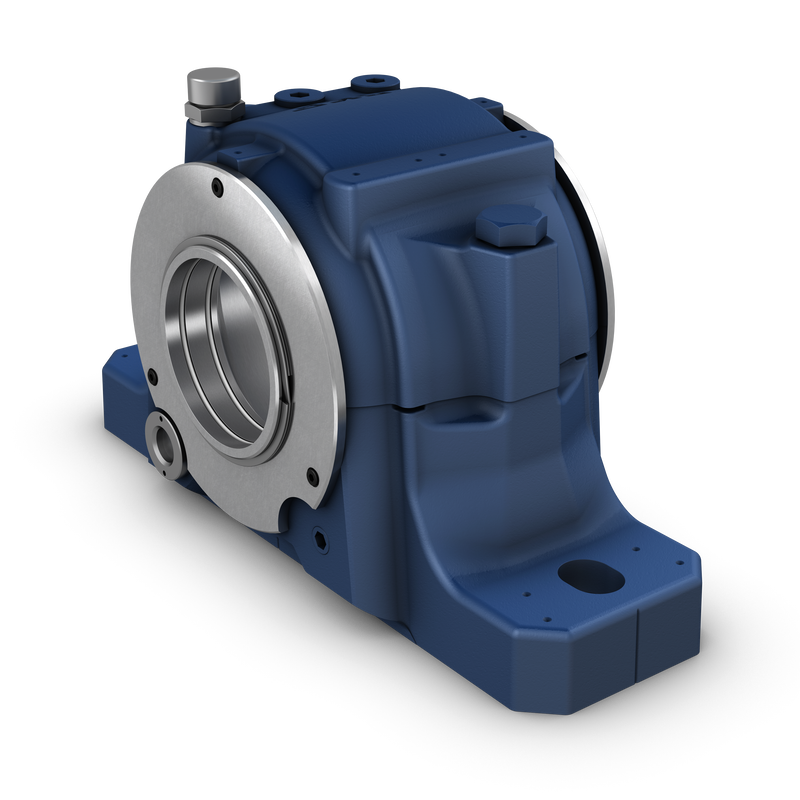

The combination of SKF housings, bearings and accessories is an excellent choice for a customized, reliable and sustainable solution for your shaft arrangement. SKF has a wide range of high-quality housing designs and sizes to meet your specific challenge – including specially designed housings for special applications. The bearings reflect SKF’s state-of-the-art technology, providing the highest-quality bearings. You need to buy each part in the combination separately.
| Housing including seals | SNL 526 TURU |
| – included oil seal | 2 x TSN 526 U |
| Bearing | C 2226 K |
| Adapter sleeve | H 3126 L |
| Locating ring | 2 x FRB 13/230 |
| End cover |
ASNH 526 R
|
| da |
115 mm
|
Shaft diameter |
|---|---|---|
| Ca |
90 mm
|
Width of bearing seat |
| Da |
230 mm
|
Diameter of bearing seat |
| A1 |
130 mm
|
Foot width |
| A2 |
211 mm
|
Width across oil seals |
| H |
290 mm
|
Height |
| H1 |
150 mm
|
Centre height of bearing seat |
| H2 |
50 mm
|
Foot height |
| J |
380 mm
|
Distance between attachment bolts |
| L |
445 mm
|
Length |
| N |
35 mm
|
Length of attachment bolt hole |
| N1 |
28 mm
|
Width of attachment bolt hole |
| J6 |
414 mm
|
Distance between dowel pins |
|---|---|---|
| J7 |
46 mm
|
Axial offset of dowel pins |
| N4 |
max. 12 mm
|
Diameter of dowel pins |
| P0° |
900 kN
|
Breaking load |
|---|---|---|
| P55° |
900 kN
|
Breaking load |
| P90° |
540 kN
|
Breaking load |
| P120° |
410 kN
|
Breaking load |
| P150° |
360 kN
|
Breaking load |
| P180° |
450 kN
|
Breaking load |
| Pa |
295 kN
|
Breaking load |
| Q120° |
900 kN
|
Load carrying ability of cap bolts |
|---|---|---|
| Q150° |
500 kN
|
Load carrying ability of cap bolts |
| Q180° |
450 kN
|
Load carrying ability 0f cap bolts |
| Mass housing |
33 kg
|
| Size of cap bolt |
M 24×130
|
|
| Recommended tightening torque for cap bolts |
350 N·m
|
|
| Recommended diameter for attachment bolts | G |
24 mm
|
| Recommended tightening torque for attachment bolts |
665 N·m
|
|
| Size of eye bolt |
M 10
|
|
| Oil level |
min. 52 mm
|
|
| Oil level |
max. 62 mm
|
