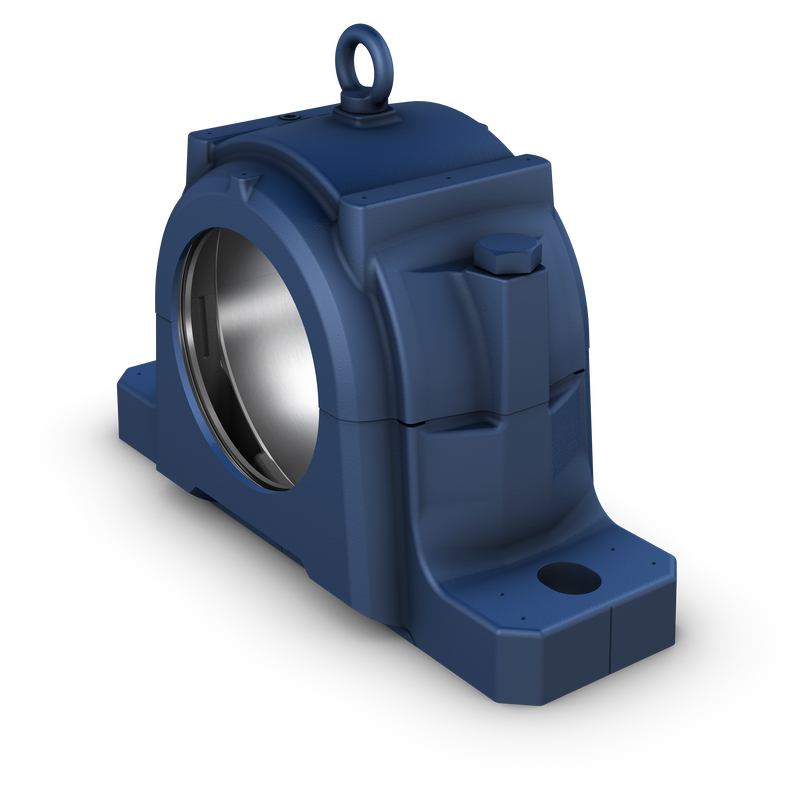

The combination of SKF housings, bearings and accessories is an excellent choice for a customized, reliable and sustainable solution for your shaft arrangement. SKF has a wide range of high-quality housing designs and sizes to meet your specific challenge – including specially designed housings for special applications. The bearings reflect SKF’s state-of-the-art technology, providing the highest-quality bearings. You need to buy each part in the combination separately.</s
| da |
107.95 mm
|
Shaft diameter |
|---|---|---|
| Ca |
86 mm
|
Width of bearing seat |
| Da |
215 mm
|
Diameter of bearing seat |
| Db |
157.5 mm
|
Bore diameter |
| A |
185 mm
|
Width |
| A1 |
120 mm
|
Foot width |
| H |
271 mm
|
Height |
| H1 |
140 mm
|
Centre height of bearing seat |
| H2 |
45 mm
|
Foot height |
| J |
350 mm
|
Distance between attachment bolts |
| L |
410 mm
|
Length |
| N |
32 mm
|
Length of attachment bolt hole |
| N1 |
26 mm
|
Width of attachment bolt hole |
| J6 |
378 mm
|
Distance between dowel pins |
|---|---|---|
| J7 |
44 mm
|
Axial offset of dowel pins |
| N4 |
max. 8 mm
|
Diameter of dowel pins |
| A2L |
199 mm
|
Width across labyrinth seals |
|---|
| P0° |
800 kN
|
Breaking load |
|---|---|---|
| P55° |
790 kN
|
Breaking load |
| P90° |
470 kN
|
Breaking load |
| P120° |
350 kN
|
Breaking load |
| P150° |
320 kN
|
Breaking load |
| P180° |
400 kN
|
Breaking load |
| Pa |
260 kN
|
Breaking load |
| Q120° |
620 kN
|
Load carrying ability of cap bolts |
|---|---|---|
| Q150° |
360 kN
|
Load carrying ability of cap bolts |
| Q180° |
310 kN
|
Load carrying ability of cap bolts |
| Size of cap bolt |
M 20×120
|
|
| Recommended tightening torque for cap bolts |
200 N·m
|
|
| Recommended diameter for attachment bolts | G |
24 mm
|
| Recommended tightening torque for attachment bolts |
665 N·m
|
|
| Initial grease fill, 20% |
630 g
|
|
| Initial grease fill, 40% |
1 000 g
|
|
| Size of eye bolt |
M 10
|
