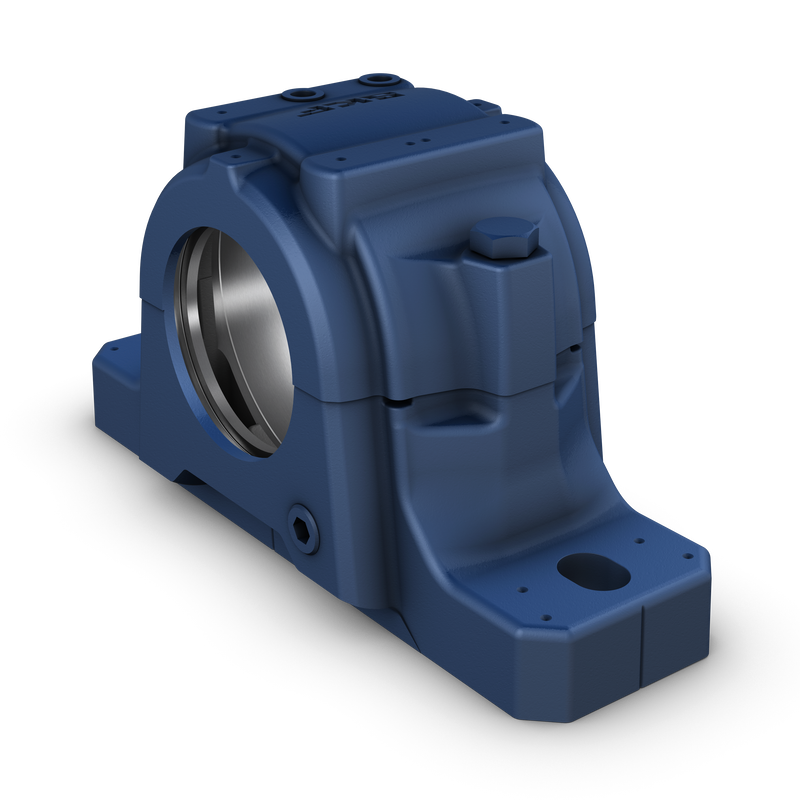

SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.
| Da |
160 mm
|
Diameter of bearing seat |
|---|---|---|
|
G7
|
Tolerance class of bearing seat diameter | |
| Ca |
65 mm
|
Width of bearing seat |
| H1 |
100 mm
|
Centre height of bearing seat |
| Db |
102.5 mm
|
Bore diameter |
|---|---|---|
| A |
143 mm
|
Overall width |
| A1 |
100 mm
|
Foot width |
| G1 |
1/8-27 NPSF
|
Thread of relubrication holes |
| H |
192 mm
|
Overall height |
| H2 |
35 mm
|
Foot height |
| L |
345 mm
|
Overall length |
| J |
290 mm
|
Distance between attachment bolts |
| N |
28 mm
|
Length of attachment bolt hole |
| N1 |
22 mm
|
Width of attachment bolt hole |
| A3 |
113 mm
|
Inside width between seal grooves |
|---|---|---|
| A4 |
5 mm
|
Width of seal groove |
| A5 |
9 mm
|
Distance to seal groove back face |
| A6 |
13 mm
|
Width at bore diameter |
| Dc |
111 mm
|
Diameter of seal groove |
| JV |
55 mm
|
Position of grease escape hole |
|---|---|---|
| HV |
33 mm
|
Distance housing bottom to oil inlet, housing base |
| GV |
G 1/2
|
Thread of grease escape hole |
| J6 |
317 mm
|
Distance between dowel pins |
|---|---|---|
| J7 |
35 mm
|
Axial offset of dowel pins |
| N4 |
max. 8 mm
|
Diameter of dowel pins |
| P0° |
430 kN
|
Breaking load at 0° load angle |
|---|---|---|
| P55° |
550 kN
|
Breaking load at 55° load angle |
| P90° |
340 kN
|
Breaking load at 90° load angle |
| P120° |
250 kN
|
Breaking load at 120° load angle |
| P150° |
215 kN
|
Breaking load at 150° load angle |
| P180° |
275 kN
|
Breaking load at 180° load angle |
| Pa |
180 kN
|
Breaking load, axial |
| Q120° |
400 kN
|
Load to reach yield point at 120° load angle |
|---|---|---|
| Q150° |
230 kN
|
Load to reach yield point at 150° load angle |
| Q180° |
200 kN
|
Load to reach yield point at 180° load angle |
| Housing material |
Cast iron
|
| Corrosion protection |
Paint – in accordance with ISO 12944-2, corrosivity category C2
|
| Mass housing |
13.7 kg
|
| Recommended diameter of attachment bolts | G |
20 mm
|
|---|---|---|
| Recommended tightening torque for attachment bolts |
385 N·m
|
|
| Size of cap bolts |
M16x90
|
|
| Tightening torque for cap bolts |
150 N·m
|
|
| Initial grease fill, 20% |
260 g
|
|
| Initial grease fill, 40% |
430 g
|
