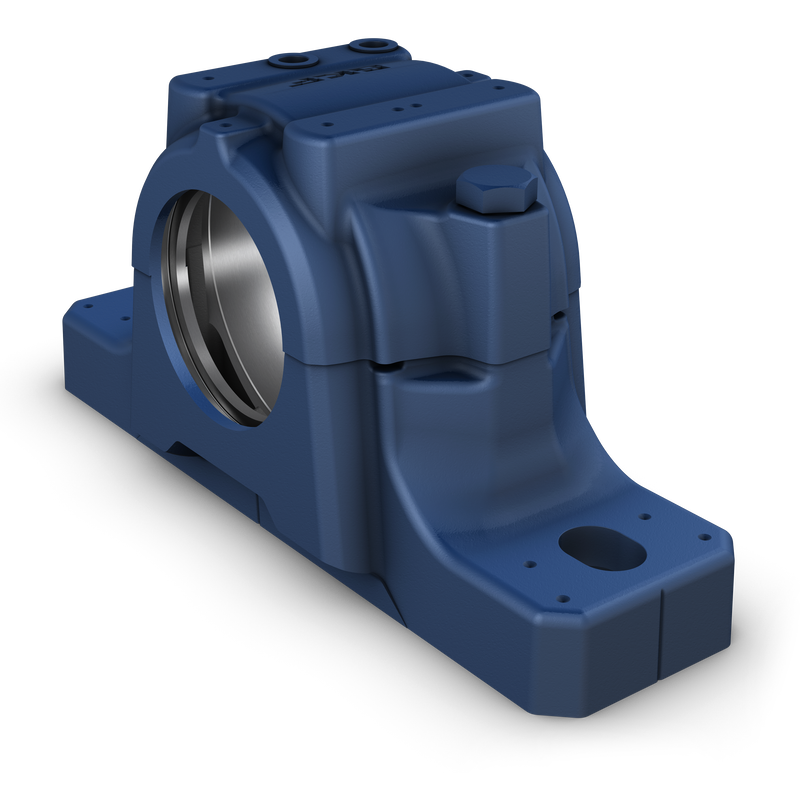

Dimensions
| da |
60 mm
|
Shaft diameter |
|---|---|---|
| db |
70 mm
|
Shaft diameter |
| Ca |
48 mm
|
Width of bearing seat |
| Da |
110 mm
|
Diameter of bearing seat |
| Db |
72 mm
|
Bore diameter |
| A |
105 mm
|
Width |
| A1 |
70 mm
|
Foot width |
| H |
134 mm
|
Height |
| H1 |
70 mm
|
Centre height of bearing seat |
| H2 |
30 mm
|
Foot height |
| J |
210 mm
|
Distance between attachment bolts |
| L |
255 mm
|
Length |
| N |
24 mm
|
Length of attachment bolt hole |
| N1 |
18 mm
|
Width of attachment bolt hole |
| J6 |
234 mm
|
Distance between dowel pins |
|---|---|---|
| J7 |
27 mm
|
Axial offset of dowel pins |
| N4 |
max. 8 mm
|
Diameter of dowel pins |
Breaking loads, housing
| P0° |
210 kN
|
Breaking load |
|---|---|---|
| P55° |
300 kN
|
Breaking load |
| P90° |
180 kN
|
Breaking load |
| P120° |
130 kN
|
Breaking load |
| P150° |
120 kN
|
Breaking load |
| P180° |
150 kN
|
Breaking load |
| Pa |
100 kN
|
Breaking load |
Yield point, cap bolts
| Q120° |
220 kN
|
Load carrying ability of cap bolts |
|---|---|---|
| Q150° |
125 kN
|
Load carrying ability of cap bolts |
| Q180° |
110 kN
|
Load carrying ability of cap bolts |
Mass
| Mass housing |
5.6 kg
|
Mounting information
| Size of cap bolt |
M 12×60
|
|
| Recommended tightening torque for cap bolts |
80 N·m
|
|
| Recommended diameter for attachment bolts | G |
16 mm
|
| Recommended tightening torque for attachment bolts |
200 N·m
|
|
| Initial grease fill, 20% |
80 g
|
|
| Initial grease fill, 40% |
135 g
|
