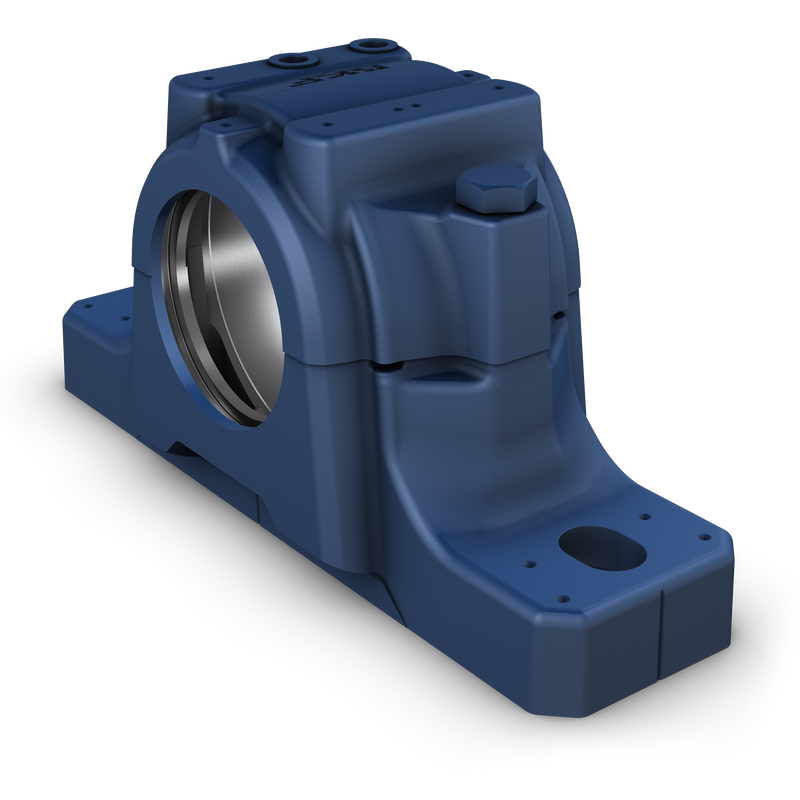

The combination of SKF housings, bearings and accessories is an excellent choice for a customized, reliable and sustainable solution for your shaft arrangement. SKF has a wide range of high-quality housing designs and sizes to meet your specific challenge – including specially designed housings for special applications. The bearings reflect SKF’s state-of-the-art technology, providing the highest-quality bearings. You need to buy each part in the combination separately.</s
| da |
31.75 mm
|
Shaft diameter |
|---|---|---|
| Ca |
39 mm
|
Width of bearing seat |
| Da |
80 mm
|
Diameter of bearing seat |
| Db |
51.5 mm
|
Bore diameter |
| A |
85 mm
|
Width |
| A1 |
60 mm
|
Foot width |
| H |
108 mm
|
Height |
| H1 |
60 mm
|
Centre height of bearing seat |
| H2 |
25 mm
|
Foot height |
| J |
170 mm
|
Distance between attachment bolts |
| L |
205 mm
|
Length |
| N |
20 mm
|
Length of attachment bolt hole |
| N1 |
15 mm
|
Width of attachment bolt hole |
| J6 |
188 mm
|
Distance between dowel pins |
|---|---|---|
| J7 |
22 mm
|
Axial offset of dowel pins |
| N4 |
max. 6 mm
|
Diameter of dowel pins |
| A2L |
97 mm
|
Width across labyrinth seals |
|---|
| P0° |
150 kN
|
Breaking load |
|---|---|---|
| P55° |
215 kN
|
Breaking load |
| P90° |
130 kN
|
Breaking load |
| P120° |
95 kN
|
Breaking load |
| P150° |
85 kN
|
Breaking load |
| P180° |
110 kN
|
Breaking load |
| Pa |
70 kN
|
Breaking load |
| Q120° |
150 kN
|
Load carrying ability of cap bolts |
|---|---|---|
| Q150° |
85 kN
|
Load carrying ability of cap bolts |
| Q180° |
75 kN
|
Load carrying ability of cap bolts |
| Size of cap bolt |
M 10×50
|
|
| Recommended tightening torque for cap bolts |
50 N·m
|
|
| Recommended diameter for attachment bolts | G |
12 mm
|
| Recommended tightening torque for attachment bolts |
80 N·m
|
|
| Initial grease fill, 20% |
35 g
|
|
| Initial grease fill, 40% |
55 g
|
