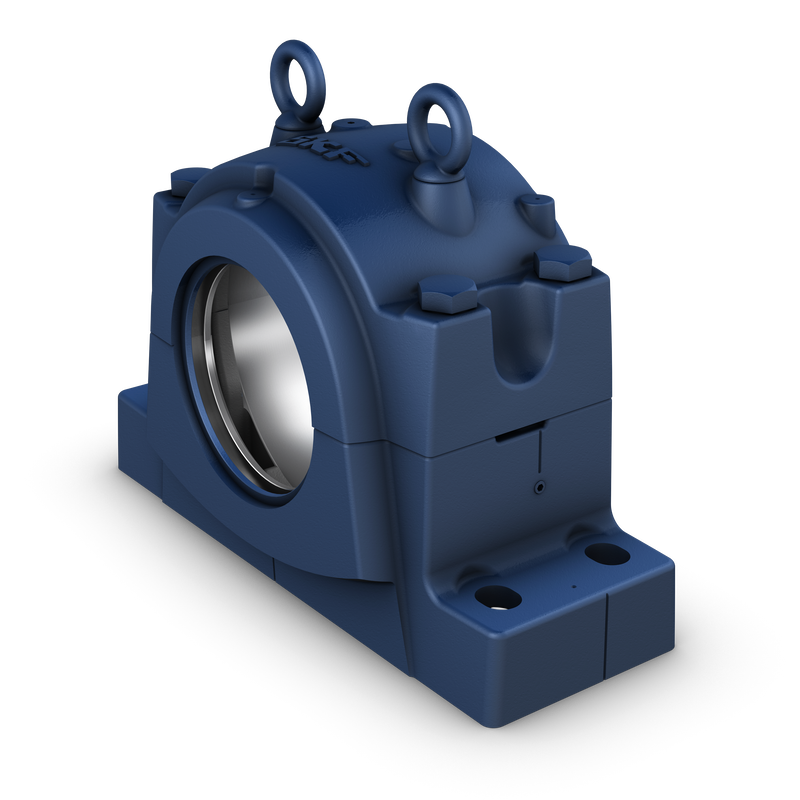

The combination of SKF housings, bearings and accessories is an excellent choice for a customized, reliable and sustainable solution for your shaft arrangement. SKF has a wide range of high-quality housing designs and sizes to meet your specific challenge – including specially designed housings for special applications. The bearings reflect SKF’s state-of-the-art technology, providing the highest-quality bearings. You need to buy each part in the combination separately.</s
| da |
130 mm
|
Shaft diameter |
|---|---|---|
| db |
150 mm
|
Shaft diameter |
| d2 |
280 mm
|
Diameter of taconite seal |
| Ca |
108 mm
|
Width of bearing seat |
| Da |
280 mm
|
Diameter of bearing seat |
| A |
230 mm
|
Width |
| A1 |
180 mm
|
Foot width |
| ATS |
240 mm
|
Width across labyrinth seals |
| ATK |
325 mm
|
Width across taconite seals |
| H |
333 mm
|
Height |
| H1 |
170 mm
|
Centre height of bearing seat |
| H2 |
70 mm
|
Foot height |
| J |
430 mm
|
Distance between attachment bolts |
| J1 |
100 mm
|
Distance between attachment bolts |
| L |
510 mm
|
Length |
| N |
34 mm
|
Length of attachment bolt hole |
| N1 |
28 mm
|
Width of attachment bolt hole |
| s |
14 mm
|
Offset between housing and bearing centre line |
| ba |
min. 75 mm
|
Distance bearing centre line to shaft end |
|---|---|---|
| ba |
max. 102 mm
|
Distance bearing centre line to shaft end |
| bb |
69.5 mm
|
Distance bearing centre line to side face of lock nut |
| bc |
107.5 mm
|
Distance bearing centre line to end cover |
| J6 |
470 mm
|
Distance between dowel pins |
|---|---|---|
| N4 |
max. 20 mm
|
Diameter of dowel pins |
| P0° |
1 700 kN
|
Breaking load |
|---|---|---|
| P55° |
2 100 kN
|
Breaking load |
| P90° |
1 000 kN
|
Breaking load |
| P120° |
760 kN
|
Breaking load |
| P150° |
680 kN
|
Breaking load |
| P180° |
850 kN
|
Breaking load |
| Pa |
550 kN
|
Breaking load |
| Q120° |
1 800 kN
|
Load carrying ability of cap bolts |
|---|---|---|
| Q150° |
1 040 kN
|
Load carrying ability of cap bolts |
| Q180° |
900 kN
|
Load carrying ability of cap bolts |
| Mass housing |
69.5 kg
|
| Size of cap bolt |
M 24×140
|
|
| Recommended tightening torque for cap bolts |
350 N·m
|
|
| Recommended diameter for attachment bolts | G |
24 mm
|
| Recommended tightening torque for attachment bolts |
665 N·m
|
|
| Size of eye bolt |
M 16
|
|
| Initial grease fill, 20% |
0.7 kg
|
|
| Initial grease fill, 40% |
1.1 kg
|
