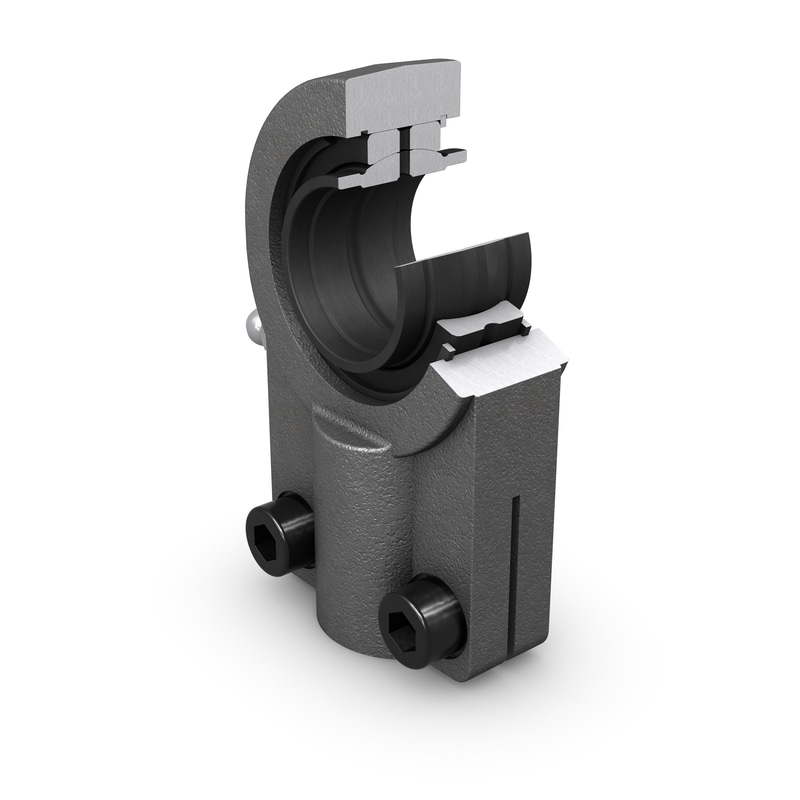

SIQG 125 ESRod end, requires maintenance, female thread with clamping screws
These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The inner ring is extended on both sides. The bearing requires maintenance and can be relubricated via grease fitting in the housing and for sizes 16 and larger also via the shaft. The female thread is available with a left- (prefix SIL) or right-hand thread.
| Maintenance |
Relubrication required
|
| Sliding contact surface combination |
Steel/steel, standard
|
| Material, inner ring |
Bearing steel
|
| Material, outer ring |
Bearing steel
|
| Sealing |
Without
|
| Attachment feature, rod end shank |
Right-hand female thread and clamping screws
|
Dimensions
| d |
125 mm
|
Bore diameter |
|---|---|---|
| d2 |
max. 268 mm
|
Diameter head |
| B |
125 mm
|
Width inner ring |
| G |
M 100×3
|
Thread |
| C1 |
max. 105 mm
|
Width head |
| h1 |
260 mm
|
Height shank end face – centre rod end eye |
| α |
4 °
|
Angle of tilt |
| dk |
160 mm
|
Raceway diameter inner ring |
| d4 |
max. 139 mm
|
Housing diameter shank |
| l3 |
min. 113 mm
|
Length threat |
| l4 |
max. 408 mm
|
Length (height) housing |
| l7 |
min. 120 mm
|
Distance shank chamfer – centre rod end eye |
| N |
max. 202 mm
|
Width shank |
| N1 |
max. 75 mm
|
Thickness shank base for clamping bolts |
| r1 |
min. 1 mm
|
Chamfer dimension bore |
Bolts with internal hexagon
| Size bolt with internal hexagon |
M 24
|
| Tightening torque bolt with internal hexagon |
710 N·m
|
Calculation data
| Basic dynamic load rating | C |
950 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 430 kN
|
| Specific dynamic load factor | K |
100 N/mm²
|
| Material constant | KM |
330
|
Mass
| Mass rod end |
43 kg
|
