SIL 25 ESRod end

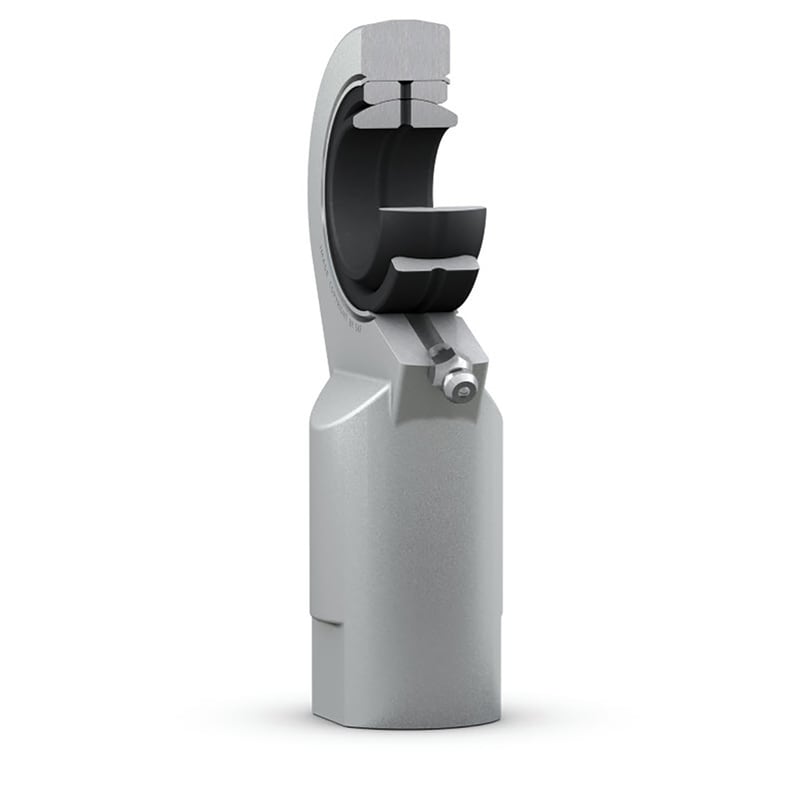

SKF rod ends consist of an eye-shaped head with an integral shank that forms a housing for a spherical plain bearing. These rod ends are used in applications such as hydraulic cylinders, steering links, tie rods, or anywhere a precision articulation joint is required. SKF provides both rod ends that require maintenance and rod ends that are maintenance-free.
| Maintenance |
Relubrication required
|
| Sliding contact surface combination |
Steel/steel, standard
|
| Material, inner ring |
Bearing steel
|
| Material, outer ring |
Bearing steel
|
| Sealing |
Without
|
| Attachment feature, rod end shank |
Left-hand female thread
|
Dimensions
| d |
25 mm
|
Bore diameter |
|---|---|---|
| d2 |
max. 65 mm
|
Diameter head |
| B |
20 mm
|
Width inner ring |
| G |
M 24×2
|
Thread |
| C1 |
max. 18 mm
|
Width head |
| h1 |
94 mm
|
Height shank end face – centre rod end eye |
| α |
7 °
|
Angle of tilt |
| dk |
35.5 mm
|
Raceway diameter inner ring |
| d4 |
≈ 35 mm
|
Diameter shank |
| l3 |
min. 36 mm
|
Length threat |
| l4 |
max. 128 mm
|
Length (height) housing |
| l5 |
≈ 18 mm
|
Length wrench flat |
| l7 |
min. 30 mm
|
Distance shank chamfer – centre rod end eye |
| w |
30 mm
|
Size wrench |
| r1 |
min. 0.6 mm
|
Chamfer dimension bore |
Calculation data
| Basic dynamic load rating | C |
48 kN
|
|---|---|---|
| Basic static load rating | C0 |
90 kN
|
| Specific dynamic load factor | K |
100 N/mm²
|
| Material constant | KM |
330
|
Mass
| Mass rod end |
0.65 kg
|
