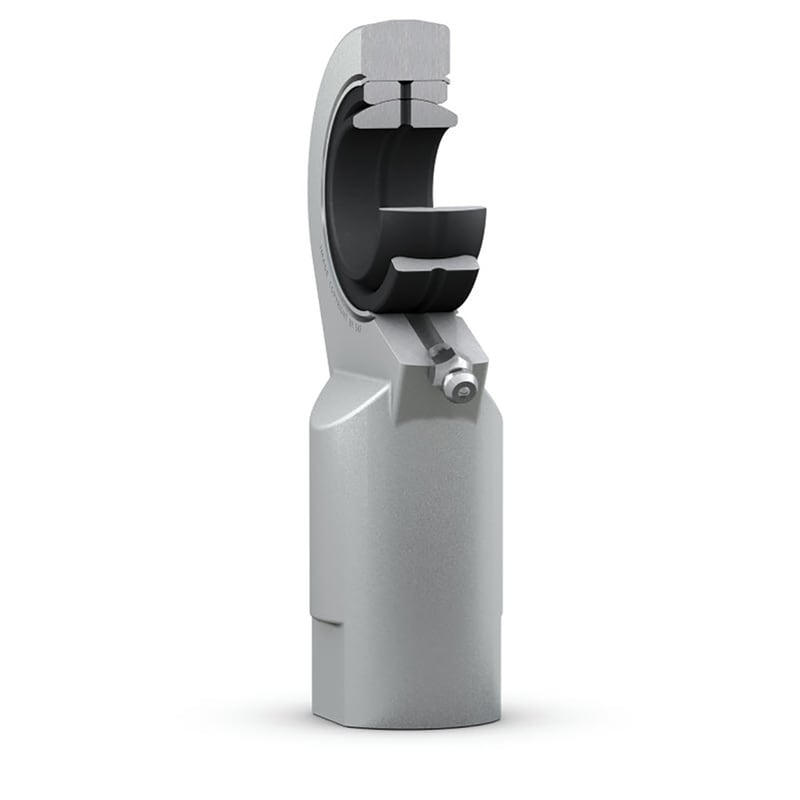

SIL 15 ESRod end, requires maintenance, female thread
These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a lubrication hole in the housing and via the shaft. The female thread is available with a left- (prefix SIL) or right-hand thread.
| Maintenance |
Relubrication required
|
| Sliding contact surface combination |
Steel/steel, standard
|
| Material, inner ring |
Bearing steel
|
| Material, outer ring |
Bearing steel
|
| Sealing |
Without
|
| Attachment feature, rod end shank |
Left-hand female thread
|
Dimensions
| d |
15 mm
|
Bore diameter |
|---|---|---|
| d2 |
max. 41 mm
|
Diameter head |
| B |
12 mm
|
Width inner ring |
| G |
M 14
|
Thread |
| C1 |
max. 10.5 mm
|
Width head |
| h1 |
61 mm
|
Height shank end face – centre rod end eye |
| α |
8 °
|
Angle of tilt |
| dk |
22 mm
|
Raceway diameter inner ring |
| d4 |
≈ 22 mm
|
Diameter shank |
| l3 |
min. 21 mm
|
Length threat |
| l4 |
max. 83 mm
|
Length (height) housing |
| l5 |
≈ 14 mm
|
Length wrench flat |
| l7 |
min. 19 mm
|
Distance shank chamfer – centre rod end eye |
| w |
19 mm
|
Size wrench |
| r1 |
min. 0.3 mm
|
Chamfer dimension bore |
Calculation data
| Basic dynamic load rating | C |
17 kN
|
|---|---|---|
| Basic static load rating | C0 |
37.5 kN
|
| Specific dynamic load factor | K |
100 N/mm²
|
| Material constant | KM |
330
|
Mass
| Mass rod end |
0.18 kg
|
