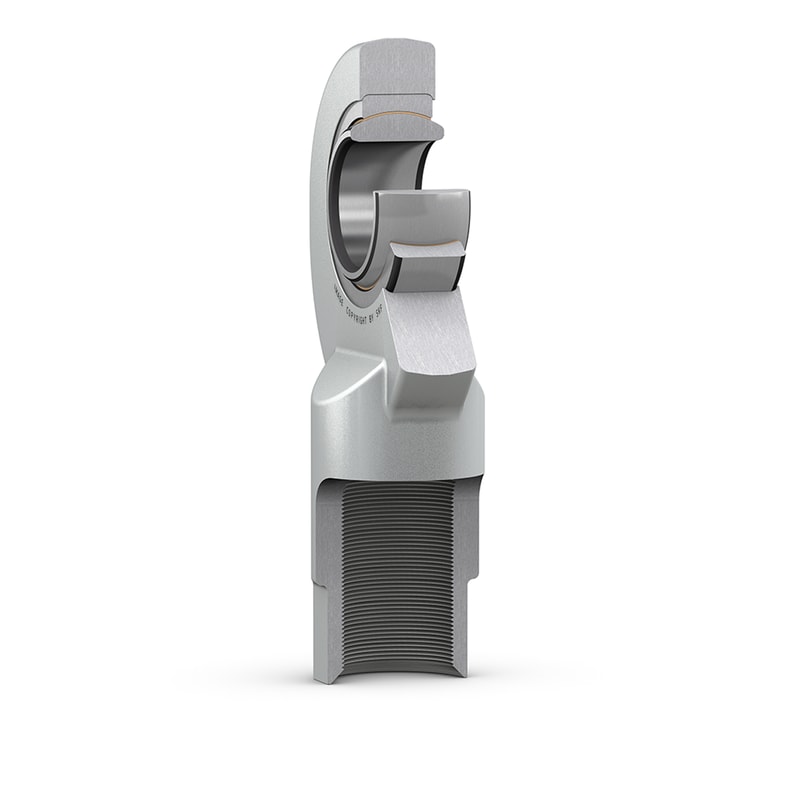

SI 30 CRod end, maintenance-free, female thread
These SKF rod ends contain a spherical plain bearing with a steel/PTFE sintered bronze contact surface combination. The bearing is maintenance-free. The female thread is available with a left- (prefix SIL) or right-hand thread.
| Maintenance |
Maintenance-free
|
| Sliding contact surface combination |
Steel/PTFE sintered bronze
|
| Material, inner ring |
Bearing steel
|
| Material, outer ring |
Deep-drawing steel
|
| Sealing |
Without
|
| Attachment feature, rod end shank |
Right-hand female thread
|
Dimensions
| d |
30 mm
|
Bore diameter |
|---|---|---|
| d2 |
max. 75 mm
|
Diameter head |
| B |
22 mm
|
Width inner ring |
| G |
M 30×2
|
Thread |
| C1 |
max. 20 mm
|
Width head |
| h1 |
110 mm
|
Height shank end face – centre rod end eye |
| α |
6 °
|
Angle of tilt |
| dk |
40.7 mm
|
Raceway diameter inner ring |
| d4 |
≈ 42 mm
|
Diameter shank |
| l3 |
min. 45 mm
|
Length threat |
| l4 |
max. 149 mm
|
Length (height) housing |
| l5 |
≈ 19 mm
|
Length wrench flat |
| l7 |
min. 36 mm
|
Distance shank chamfer – centre rod end eye |
| w |
36 mm
|
Size wrench |
| r1 |
min. 0.6 mm
|
Chamfer dimension bore |
Calculation data
| Basic dynamic load rating | C |
65.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
118 kN
|
| Specific dynamic load factor | K |
100 N/mm²
|
| Material constant | KM |
1 400
|
Mass
| Mass rod end |
1.05 kg
|
