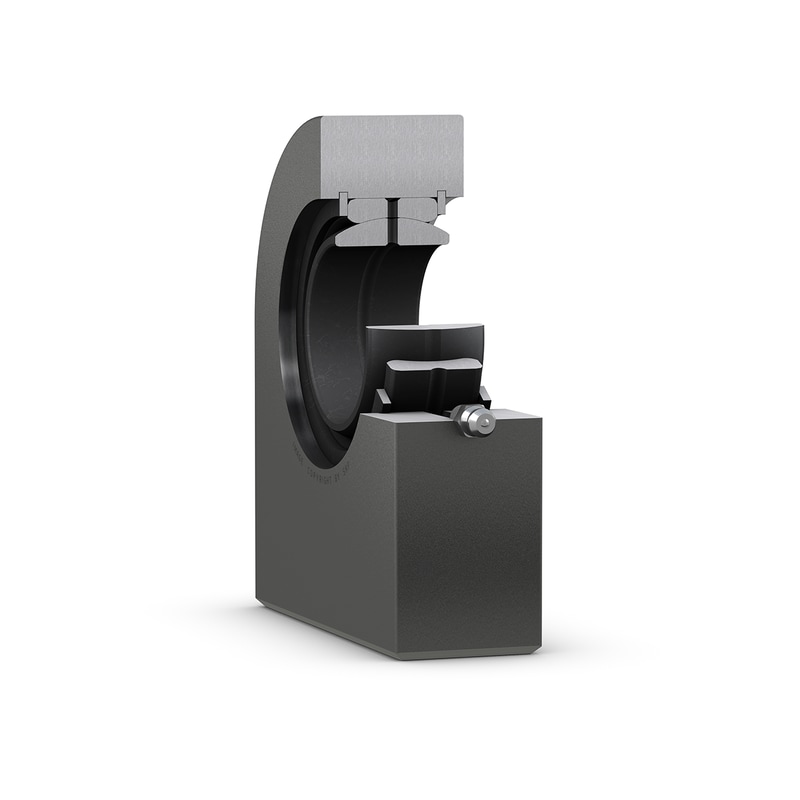

SCF 70 ESRod end, requires maintenance, rectangular section welding shank
These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a grease fitting in the housing and via the shaft. The housing with the rectangular section welding shank enables heavy static loads.
| Attachment feature, rod end shank |
Rectangular section, for welding
|
Dimensions
| d |
70 mm
|
Bore diameter |
|---|---|---|
| d2 |
max. 166.5 mm
|
Diameter head |
| B |
49 mm
|
Width inner ring |
| C1 |
max. 57 mm
|
Width head |
| h2 |
115 mm
|
Height shank end face – centre rod end eye |
| α |
6 °
|
Angle of tilt |
| dk |
92 mm
|
Raceway diameter inner ring |
| l6 |
max. 199 mm
|
Length (height) housing |
| r1 |
min. 1 mm
|
Chamfer dimension bore |
Calculation data
| Basic dynamic load rating | C |
315 kN
|
|---|---|---|
| Basic static load rating | C0 |
680 kN
|
| Specific dynamic load factor | K |
100 N/mm²
|
| Material constant | KM |
330
|
Mass
| Mass rod end |
10 kg
|
