SC 40 ESRod end, requires maintenance, cylindrical section welding shank

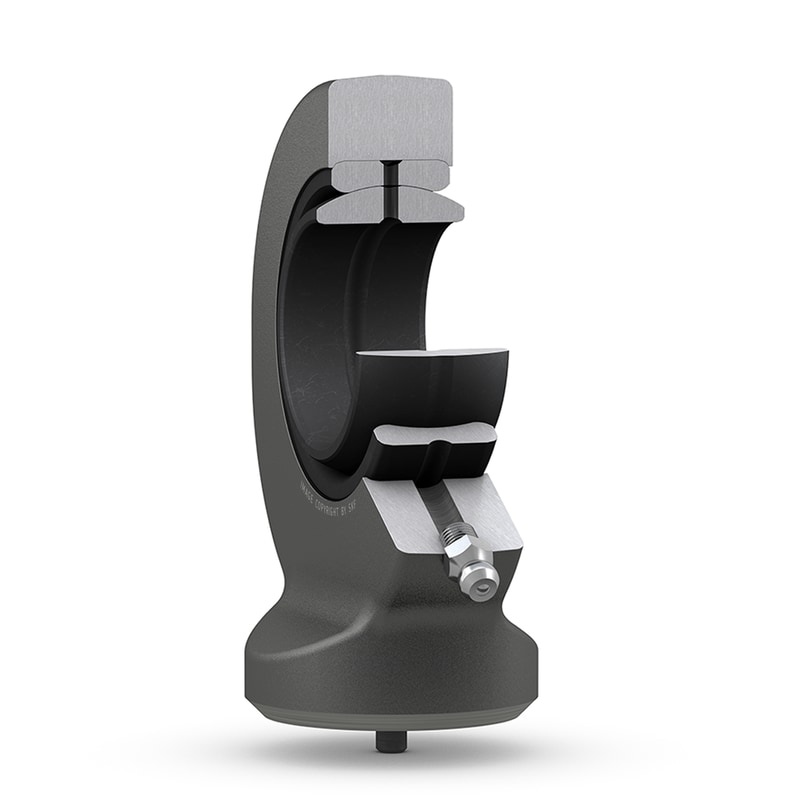

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a lubrication hole or grease fitting in the housing and via the shaft. The dowel pin eases centring at the cylindrical section welding shank.
| Attachment feature, rod end shank |
Cylindrical section, with locating pin, for welding
|
Dimensions
| d |
40 mm
|
Bore diameter |
|---|---|---|
| d2 |
max. 94 mm
|
Diameter head |
| B |
28 mm
|
Width inner ring |
| C1 |
max. 24 mm
|
Width head |
| h2 |
69 mm
|
Height shank end face – centre rod end eye |
| α |
7 °
|
Angle of tilt |
| dk |
53 mm
|
Raceway diameter inner ring |
| d5 |
max. 54 mm
|
Diameter welding shank |
| d6 |
4 mm
|
Diameter centering pin at welding shank end |
| l6 |
max. 118 mm
|
Length (height) housing |
| l7 |
min. 46 mm
|
Distance shank chamfer – centre rod end eye |
| l8 |
4 mm
|
Length chamfer at welding shank end |
| r1 |
min. 0.6 mm
|
Chamfer dimension bore |
Calculation data
| Basic dynamic load rating | C |
100 kN
|
|---|---|---|
| Basic static load rating | C0 |
134 kN
|
| Specific dynamic load factor | K |
100 N/mm²
|
| Material constant | KM |
330
|
Mass
| Mass rod end |
1.3 kg
|
