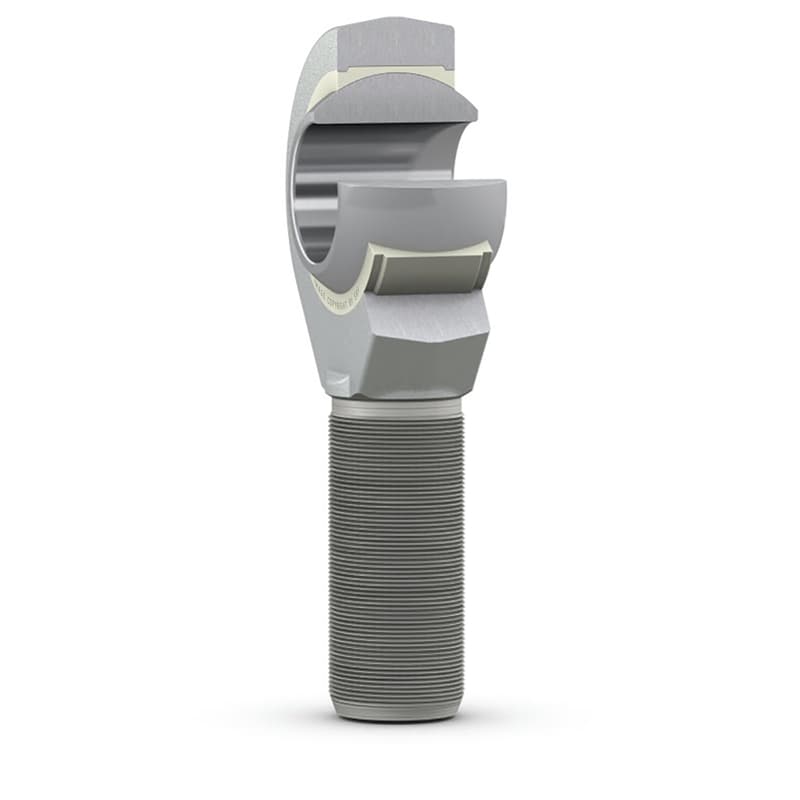

SALKB 14 FRod end, maintenance-free, male thread
These SKF rod ends have an injection moulded sliding layer of PTFE FRP between the housing and the inner ring. This sliding contact surface combination is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread.
| Maintenance |
Maintenance-free
|
| Sliding contact surface combination |
Steel/PTFE FRP
|
| Material, inner ring |
Bearing steel
|
| Sealing |
Without
|
| Attachment feature, rod end shank |
Left-hand male thread
|
Dimensions
| d |
14 mm
|
Bore diameter |
|---|---|---|
| d2 |
max. 37 mm
|
Diameter head |
| B |
19 mm
|
Width inner ring |
| G |
M 14
|
Thread |
| C1 |
max. 14.5 mm
|
Width head |
| h |
60 mm
|
Height shank end face – centre rod end eye |
| α |
16 °
|
Angle of tilt |
| dk |
25.4 mm
|
Raceway diameter inner ring |
| l1 |
min. 36 mm
|
Length threat |
| l2 |
max. 80 mm
|
Length (height) housing |
| l7 |
min. 18 mm
|
Distance shank chamfer – centre rod end eye |
| r1 |
min. 0.3 mm
|
Chamfer dimension bore |
Calculation data
| Basic dynamic load rating | C |
17 kN
|
|---|---|---|
| Basic static load rating | C0 |
25.5 kN
|
| Specific dynamic load factor | K |
50 N/mm²
|
| Material constant | KM |
530
|
Mass
| Mass rod end |
0.13 kg
|
