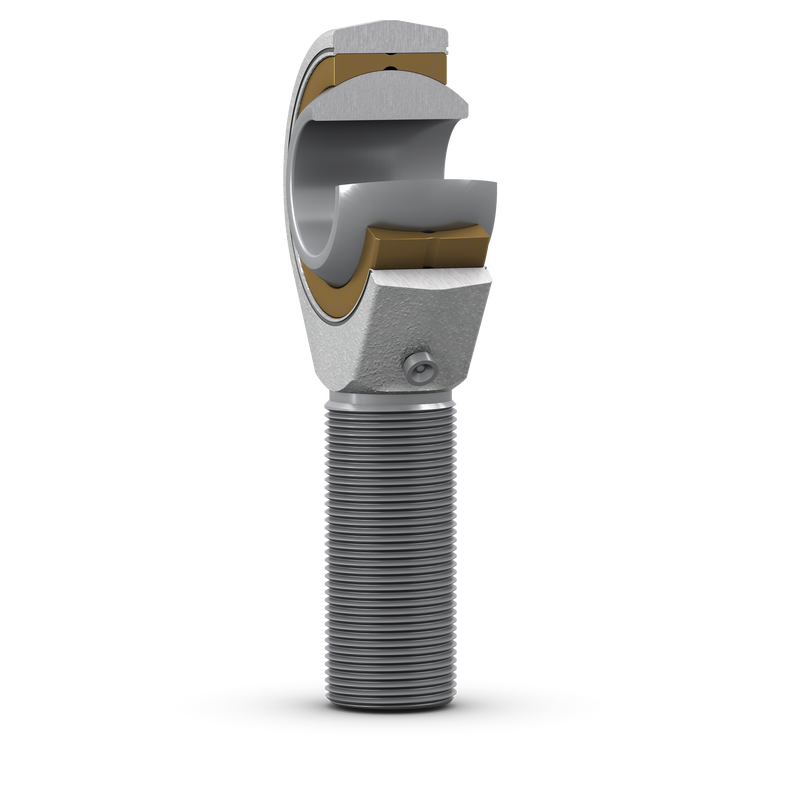

SALKAC 22 MRod end, requires maintenance, male thread
These SKF rod ends contain a spherical plain bearing with a steel/bronze sliding contact surface combination. The bearing requires maintenance, sizes 6 and larger can be relubricated via a grease fitting in the housing and via the shank. The male thread is available with a left- (prefix SAL) or right-hand thread.
| Maintenance |
Relubrication required
|
| Sliding contact surface combination |
Steel/bronze
|
| Material, inner ring |
Bearing steel
|
| Sealing |
Without
|
| Attachment feature, rod end shank |
Left-hand male thread
|
Dimensions
| d |
22 mm
|
Bore diameter |
|---|---|---|
| d2 |
max. 55 mm
|
Diameter head |
| B |
28 mm
|
Width inner ring |
| G |
M 22×1.5
|
Thread |
| C1 |
max. 21 mm
|
Width head |
| h |
84 mm
|
Height shank end face – centre rod end eye |
| α |
15 °
|
Angle of tilt |
| dk |
38.1 mm
|
Raceway diameter inner ring |
| l1 |
min. 48 mm
|
Length threat |
| l2 |
max. 114 mm
|
Length (height) housing |
| r1 |
min. 0.3 mm
|
Chamfer dimension bore |
Calculation data
| Basic dynamic load rating | C |
38 kN
|
|---|---|---|
| Basic static load rating | C0 |
39 kN
|
| Specific dynamic load factor | K |
50 N/mm²
|
| Material constant | KM |
330
|
Mass
| Mass rod end |
0.44 kg
|
