SALA 70 TXE-2LSRod end

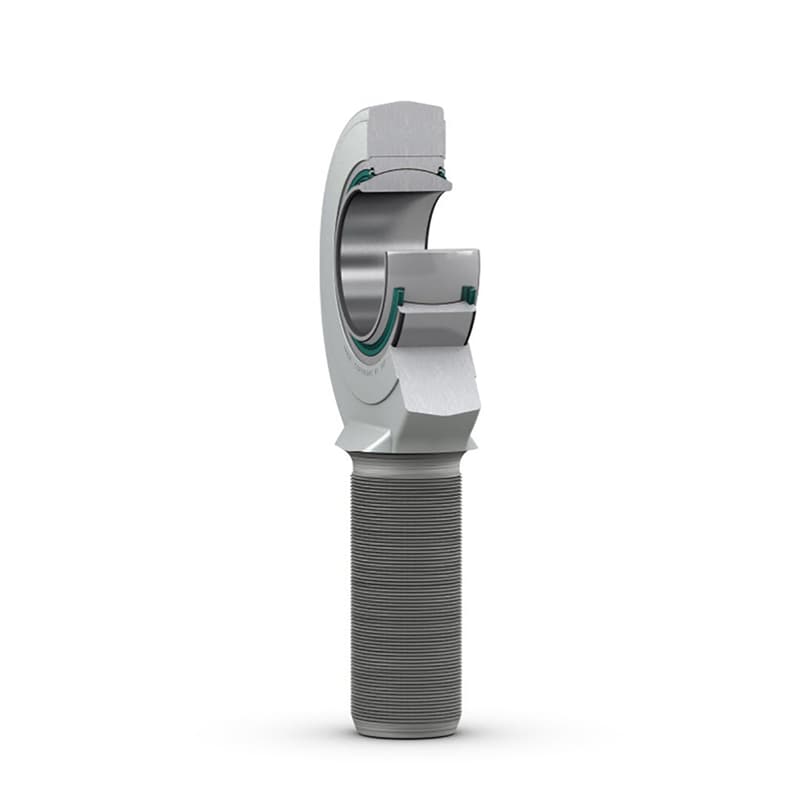

SKF rod ends consist of an eye-shaped head with an integral shank that forms a housing for a spherical plain bearing. These rod ends are used in applications such as hydraulic cylinders, steering links, tie rods, or anywhere a precision articulation joint is required. SKF provides both rod ends that require maintenance and rod ends that are maintenance-free.
| Maintenance |
Maintenance-free
|
| Sliding contact surface combination |
Steel/PTFE fabric
|
| Material, inner ring |
Bearing steel
|
| Material, outer ring |
Bearing steel
|
| Sealing |
Seal on both sides
|
| Sealing type |
Triple-lip
|
| Attachment feature, rod end shank |
Left-hand male thread
|
Dimensions
| d |
70 mm
|
Bore diameter |
|---|---|---|
| d2 |
max. 162 mm
|
Diameter head |
| B |
49 mm
|
Width inner ring |
| G |
M 56×4
|
Thread |
| C1 |
max. 43 mm
|
Width head |
| h |
235 mm
|
Height shank end face – centre rod end eye |
| α |
6 °
|
Angle of tilt |
| dk |
92 mm
|
Raceway diameter inner ring |
| l1 |
min. 125 mm
|
Length threat |
| l2 |
max. 319 mm
|
Length (height) housing |
| l7 |
min. 85 mm
|
Distance shank chamfer – centre rod end eye |
| r1 |
min. 1 mm
|
Chamfer dimension bore |
Calculation data
| Basic dynamic load rating | C |
880 kN
|
|---|---|---|
| Basic static load rating | C0 |
490 kN
|
| Specific dynamic load factor | K |
300 N/mm²
|
Mass
| Mass rod end |
7.9 kg
|
Related products
-
SAL 8 ERod end, requires maintenance, male thread
These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated only from the side. The male thread is available with a left- (prefix SAL) or right-hand thread.View product
-
SAL 8 CRod end
SKF rod ends consist of an eye-shaped head with an integral shank that forms a housing for a spherical plain bearing. These rod ends are used in applications such as hydraulic cylinders, steering links, tie rods, or anywhere a precision articulation joint is required. SKF provides both rod ends that require maintenance and rod ends that are maintenance-free.View product
-
SAKB 8 FRod end, maintenance-free, male thread
These SKF rod ends have an injection moulded sliding layer of PTFE FRP between the housing and the inner ring. This sliding contact surface combination is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread.View product
-
SAKAC 5 MRod end, requires maintenance, male thread
These SKF rod ends contain a spherical plain bearing with a steel/bronze sliding contact surface combination. The bearing requires maintenance, sizes 6 and larger can be relubricated via a grease fitting in the housing and via the shank. The male thread is available with a left- (prefix SAL) or right-hand thread.View product
