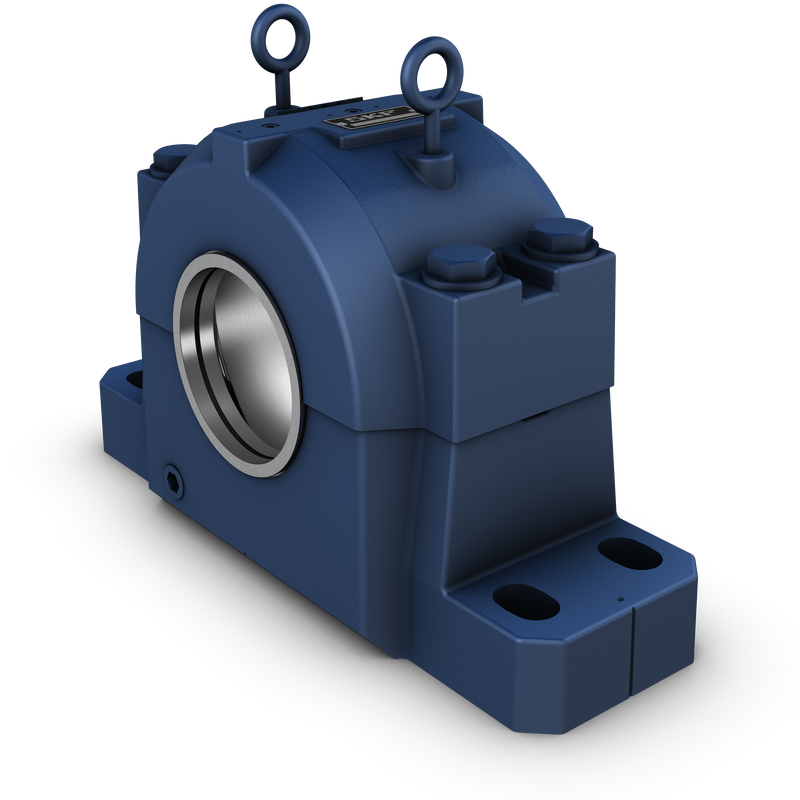

SAF split plummer (pillow) block housings have a two-piece, cast metal construction with inch dimensions. These housings have been developed to be the best choice for design, quality, robustness, and cost efficiency. SAF housings, when used with SKF bearings, seals and related components, provide a tailored solution to achieve maximum service life and reduce maintenance requirements for rotating equipment.
| da |
201.613 mm
|
Shaft diameter |
|---|
| Da |
400 mm
|
Diameter of bearing seat |
|---|---|---|
|
G7
|
Tolerance class of bearing seat diameter | |
| Ca |
117.805 mm
|
Width of bearing seat |
| H1 |
241.3 mm
|
Centre height |
| A1 |
222.25 mm
|
Foot width |
|---|---|---|
| A2 |
311.15 mm
|
Overall width |
| H |
473.075 mm
|
Overall height |
| H2 |
95.25 mm
|
Foot height |
| J |
min. 628.65 mm
|
Distance between attachment bolts |
| J |
max. 708.025 mm
|
Distance between attachment bolts |
| J1 |
133.35 mm
|
Distance between attachment bolts, axial |
| L |
831.85 mm
|
Overall length |
| N1 |
41.275 mm
|
Width of attachment bolt hole |
| R1 |
133.35 mm
|
Distance of drain plug from centre |
|---|---|---|
| R2 |
49.213 mm
|
Height of drain plug position |
| RG |
1-11.5 NPT
|
Thread of drain hole |
| PG |
1/4-18 NPT
|
Thread of grease fitting in cap |
| P60° |
691 kN
|
Safe load at 60° load angle |
|---|---|---|
| P90° |
414 kN
|
Safe load at 90° load angle |
| P120° |
260 kN
|
Safe load at 120° load angle |
| P150° |
236 kN
|
Safe load at 150° load angle |
| P180° |
285 kN
|
Safe load at 180° load angle |
| Pa |
185 kN
|
Safe load, axial |
| Housing material |
Cast steel
|
| Corrosion protection |
Paint – in accordance with ISO 12944-2, corrosivity category C2
|
| Mass housing |
280 kg
|
| Cap bolt |
1-1/2-6 UNC x 8
|
|
| Number of cap bolts |
4
|
|
| SAE grade of cap bolt |
8
|
|
| Recommended tightening torque for cap bolts |
4 284.385 N·m
|
|
| Recommended diameter for attachment bolts | G |
38.1 mm
|
| Eye bolt |
1/2-13 UNC
|
|
| Number of eyebolts |
2
|
|
| Width of included locating ring |
9.728 mm
|
